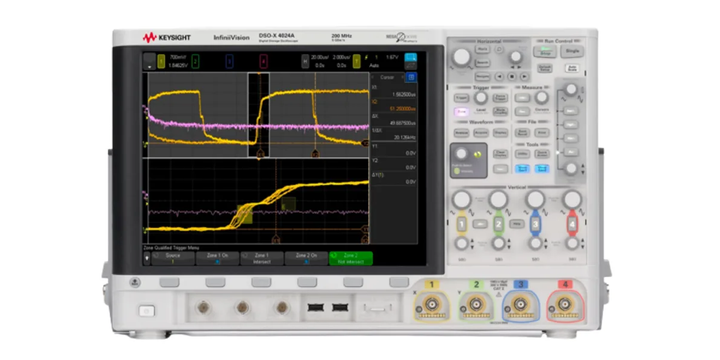

Keysight Technologies DSOX4024A Infiniivision 4000 X Series, 200MHz Bench Oscilloscope, 4 Analogue Channels

Stay in touch with electrical signal changes in your industrial equipment with this bench oscilloscope from Keysight Technologies. It has four analogue channels, giving you access to multiple devices at the same time. Thanks to its 12.1in HD capacitive touchscreen, you get a clear view of displayed readings in both graphical and numerical formats. The device also has a memory of 4Mpts, so it's a breeze to store large amounts of sample data.

Features and Benefits of 4000 X Series Oscilloscope.

• Supports USB2.0 connectivity for convenient data exchange
• Maximum waveform update rate of one million waveforms per second to quickly detect small signal changes
• Wide operating temperature range between 0°C and +50°C for use in demanding conditions
• Consumes just 120W of power during operation for energy efficiency
• 11 language options make it suitable for global use

Applications

• Measurement and instrumentation
• Plant automation
• Process and packaging industry

What are the dimensions of this oscilloscope?

• Standard USB 2.0 Lan, video (GPIB option), USB mouse and keyboard support.

This unit has compact dimensions of 275 (H) x 454 (W) x 156mm (D), so it won't take up a lot of space on your workbench.

Safety Standards Met.

Environmental Rating.

• Meets EMC Directive 2004/108/EC, IEC 61326-1:2005/EN.

Electromagnetic Compatibility.

Meets EMC Directive (2004/108/EC), meets or exceeds IEC 61326-1:2005/EN 61326-1:2006 Group 1 Class A requirement CISPR 11/EN 55011 IEC 61000-4-2/EN 61000-4-2 IEC 61000-4-3/EN 61000-4-3 IEC 61000-4-4/EN 61000-4-4 IEC 61000-4-5/EN 61000-4-5 IEC 61000-4-6/EN 61000-4-6 IEC 61000-4-11/EN 61000-4-11 Canada: ICES-001:2004 Australia/New Zealand: AS/NZS.

Safety.

• ANSI/UL Std No 61010-1:2012, CAN/CSA-C22.2 No 61010-1-12.
• ANSI/UL Std No 61010-2-030:2012, CAN/CSA-C22.2 No 61010-2-030-12.

Vibration.

• Meets IEC 60068-2-6 and MIL-PRF-28800, class 3 random.
