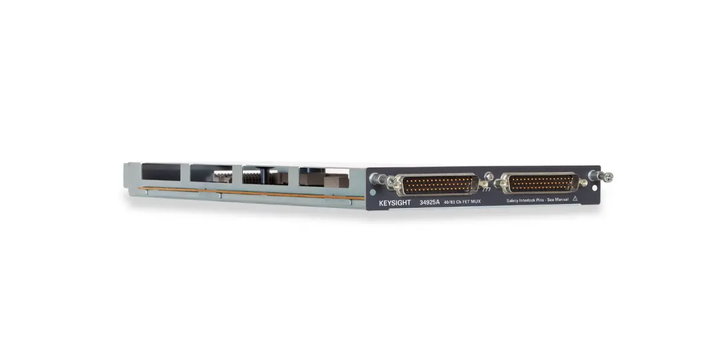

Keysight Technologies 34925A Data Acquisition Multiplexer for Use With 34980A Data Acquisition System

Break big chunks of data down to size with the help of this data acquisition connector from Keysight Technologies. It's an FET multiplexer that scans up to 1000 channels per second, making it an ideal fit for high-volume test applications. For ease of assembly, this multiplexer module is specifically designed for use with Keysight’s 34980A data acquisition system (195-3167). Installation is a cinch, thanks to its standard 50-pin D-sub connectors.

Features & Benefits

• Handles inputs of +80V for compatibility with low-power equipment
• Flexible configuration means you can mix two and four-wire channels on the same module, or set it up as a one-wire multiplexer
• Optical isolation to minimise the risk of electrical damage

Applications

• Telecommunications
• Automotive manufacturing
• Consumer electronics

How many one-wire, two-wire and four-wire channels can this multiplexer support?

For versatility, you can set this multiplexer up to support 80 one-wire channels, 40 two-wire channels or 20 four-wire channels.

What are my connection options?

You can use this multiplexer as part of a wider data acquisition system by connecting it with standard cables or detachable terminal blocks.
