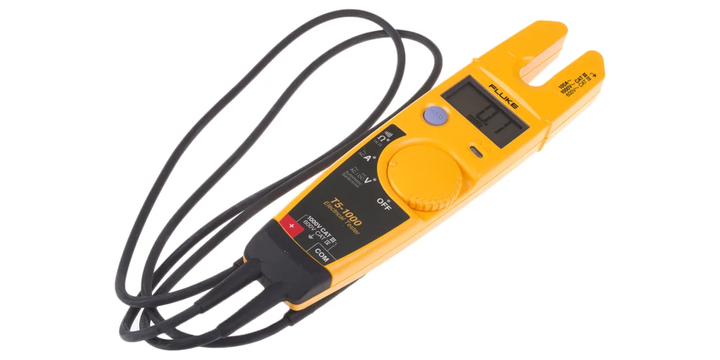

Fluke 0659570 T5 Multifunction Tester

• Automatic RCD Test Yes
• Model Number p T5
• RCD Ramp Test No
• Maximum Voltage Measurement 1000V ac
• Test Type AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Resistance
• Weight 300g
• Height 203mm
• Minimum Operating Temperature -10°C
• Continuity Range 25 → 400 O
• Dimensions 30.5 x 51 x 203mm
• Width 51mm
• Safety Category Level CAT III, CAT IV
• Maximum Operating Temperature +50°C
• Maximum Continuity Resistance 1000Ω
• Safety Category Voltage 600 V, 1000 V
• Voltage Measurement Range 0 to 1000V
• Battery Type AA x 2
• Safety Category CAT IV 600 V / CAT III 1000 VV
• Power Source Battery
• Length 30.5mm
• Minimum Continuity Resistance 0Ω
• Operating Temperature Range -10 → +50 °C

Fluke T5 electrical testers are compact tools for checking voltage, continuity and current. With a T5 model, the operator has only to select volts, ohms or current and the tester does the rest. Open Jaw current allows checking current up to 100 A, without breaking the circuit.

Features & Benefits

• Automatically measures volts ac and volts dc with precise digital resolution
• Displays resistance to 1000 Ω
• Easy and accurate Open Jaw current measurement
• Continuity beeper
• Compact design with neat probe storage
• Rugged enough to withstand a 10 ft (3 m) drop
• Detachable SlimReach probe tips customised for national electrical standards
• Test leads accept Fluke accessory test clips
• Can stay connected much longer than solenoid type tester
• Auto off mode to conserve battery life (powered by AA battery x2)
• Dimensions 30.5 x 51 x 203 mm
• Weight 300 g

Approvals

UL, CSA, VDE

Standards

EN61010-1 CAT III 600 V
