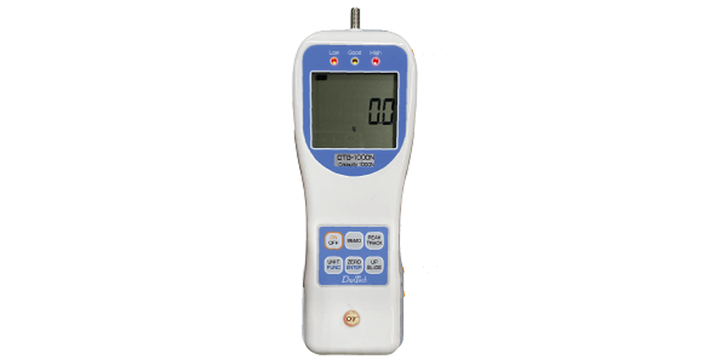

Digitech DTG-20N Force Gauge 20N

Digitech Digital Force Gauge DTG series quality force gauge, featuring an easy-to read, auto-reverse large LCD display. Made in Japan.

• Display reverse function.
• Auto power OFF function. Battery status display.
• Automatic peak measuring value record(Auto-memory function). Memory up to 1000 data of peak and hold values.
• Overload warning.(LED flash and sound alarm)
• Print out measuring data with connection to printer.(Serial output)
• Connectable to computer through USB output cable(standard accessory）
• By setting control value of load and displacement it is possible for control the instruments.
• Measuring shaft M6
• Measuring accuracy ±0.2％ f.s
• Measuring unit N, kgf(gf), lb
• Measuring cycle 1ms, 5ms, 16ms, 50ms (selectable)
• Display renewal cycle 1, 2, 5, 10, 20times /sec (selectable)
• Communication method USB-C
• Memory 1000 data
• External input Mitutoyo digimatic input, pulse input.（displacement meter）point ON,OFF load detection input.
• Printer output Serial output.
• Output for test stand Load setting /displacement setting method UP,DOWN,STOP output.overload output(open collector output)
• Analog output ±2V / f.s（load value only）
• Tolerance judgment output LOW・GOOD・HIGH LED lighting and output.（open collector output）
• Display H45mm×W50mm LCD. Load: 6digit, Displacement: 7digit. Battery remain quantity.
• Dimension H220mm×W74mm×D37mm
• Weight approx. 500g
• Operationtemperrature 0℃～＋40℃
• Power source Ni-MH battery. AC100～240V multi AC adapter. USB-C
• Standard accessory 6pcs jig. A multi AC adapter.USB cable.Carrying case.Operation manual.Test Certificate

MODEL DTG-20N

Capacity 20N (2kgf)

Resolution 0.01N (1gf)
