Dayton 5UXK8 Well Jet Pump System 1/2 Hp 6.0 Gal Tank
Dayton 5UXK8 Well Jet Pump System 1/2 Hp 6.0 Gal Tank
Brand:
DAYTON
Model:
5UXK8
Specifications
infotip-icon
View other Water Pumps dimensions or variations
Please select at least one specification below.
Product Description

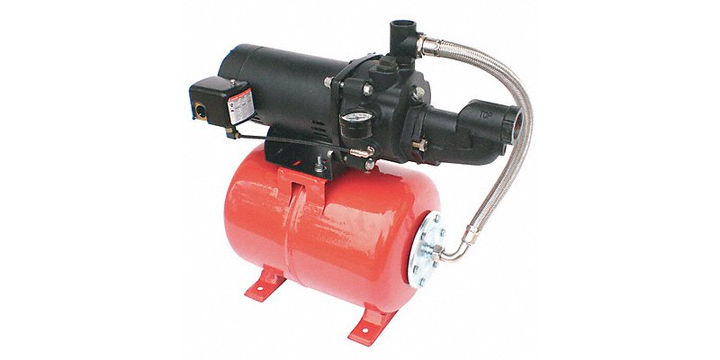

Dayton 5UXK8 Well Jet Pump System 1/2 Hp 6.0 Gal Tank

  • Shallow Well Jet Pump System
  • HP: 1/2 hp
  • Rated Voltage: 115/230V AC
  • Amps: 10.8/5.5
  • Flow Rate @ 10 ft Lift:
    • @ 30 PSI: 13.1 gpm
    • @ 40 PSI: 11.4 gpm
    • @ 50 PSI: 6.4 gpm
  • Max Suction Lift: 25 ft
  • Tank Capacity: 6.0 gal
  • Tank Bladder Pressure: 28 psi
  • Shut Off Pressure: 64 psi
  • Max Inlet Pressure: 123 psi
  • Inlet: 1-1/4 in NPT
  • Discharge: 1 in NPT
  • Overall Length: 21 3/16
  • Overall Width: 11 1/2
  • Overall Height: 20
