Dayton 11C685 Plug-In Utility Pump 1/4 Hp 120VAC
Dayton 11C685 Plug-In Utility Pump 1/4 Hp 120VAC
Brand:
DAYTON
Model:
11C685
Specifications
infotip-icon
View other Water Pumps dimensions or variations
Please select at least one specification below.
Product Description

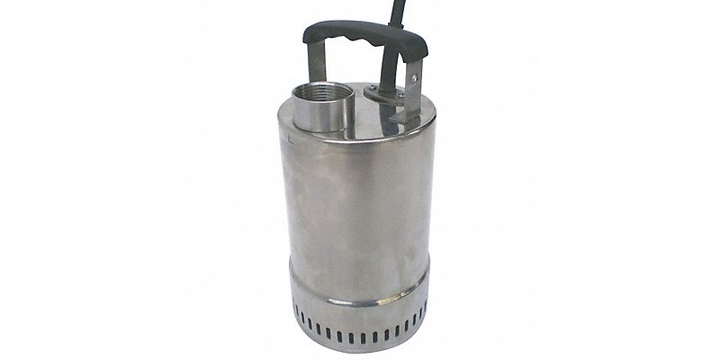

Dayton 11C685 Plug-In Utility Pump 1/4 Hp 120VAC

  • Plug-In Utility Pump
  • Horsepower: 1/4 HP
  • Rated Voltage: 120V AC
  • Frequency: 60 Hz
  • Phase: 1
  • Amps: 3.20
  • Switch Actuation: No Switch Included
  • Body Material: Stainless Steel
  • Impeller Material: Stainless Steel
  • Shaft Seal Material: Buna-N, Ceramic, Stainless Steel
  • Flow Rate @ 5 ft Head: 21 gpm
  • Flow Rate @ 10 ft Head: 15 gpm
  • Flow Rate @ 15 ft Head: 8 gpm
  • Maximum Head: 20 ft
  • Minimum Sump Pit Diameter: 18 in
  • Minimum Water Depth: 12 in
  • Body Diameter: 5 5/8 in
  • Width at Widest Point: 5 5/8 in
