Abb T1C160/R80 Mccb 80A 3P 25KA
Brand: | ABB |
Model: | T1C160/R80 |
Product Description

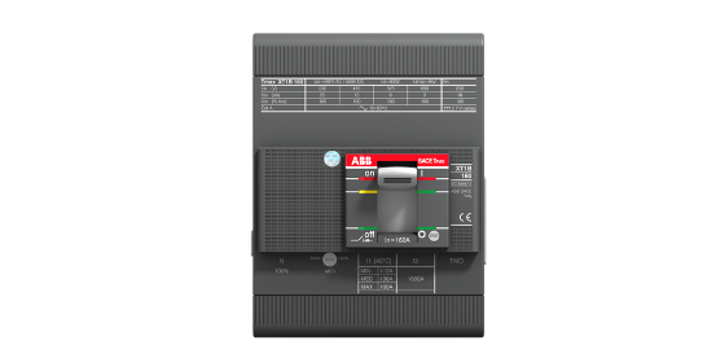

Abb T1C160/R80 Mccb 80A 3P 25KA
- C.BREAKER TMAX XT1C 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 80-800 A
- Product Net Width:101.6 mm
- Product Net Height:130 mm
- Product Net Depth / Length:70 mm
- Product Net Weight:1.4 kg
- Unit of measurement : Pcs
Additional Information
- Circuit Breaker Type to be Associated:Power Distribution
- Connecting Capacity Main Circuit:Busbar 45.5 ... 80 mm²
- Current Type:AC/DC
- Electrical Durability:120 cycles per hour
- 8000 cycle
- Mechanical Durability:240 cycles per hour
- 25000 cycle
- Number of Poles:3
- Opening Time:CB with SOR 15 ms
- CB with UVR 15 ms
- Order Multiple:1 piece
- Power Loss:at Rated Operating Conditions per Pole 4.8 W
- Product Main Type:SACE Tmax XT
- Product Name:Moulded Case Circuit Breaker
- Product Type:Automatic Circuit Breaker
- Rated Current (In):80 A
- Rated Frequency (f):50 / 60 Hz
- Rated Voltage (Ur):690 V
- Rated Impulse Withstand Voltage (Uimp):8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii):800 A
- Rated Insulation Voltage (Ui):800 V
- Rated Operational Voltage:690 V AC
- 500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics):(220 V AC) 40 kA
- (230 V AC) 40 kA
- (240 V AC) 40 kA
- (380 V AC) 25 kA
- (415 V AC) 25 kA
- (440 V AC) 12.5 kA
- (500 V AC) 9 kA
- (525 V AC) 8 kA
- (690 V AC) 4 kA
- (250 V DC) 2 Poles in Series 25 kA
- (500 V DC) 3 Poles in Series 25 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):(220 V AC) 40 kA
- (230 V AC) 40 kA
- (240 V AC) 40 kA
- (380 V AC) 25 kA
- (415 V AC) 25 kA
- (440 V AC) 25 kA
- (500 V AC) 18 kA
- (525 V AC) 8 kA
- (690 V AC) 4 kA
- (250 V DC) 2 Poles in Series 25 kA
- (500 V DC) 3 Poles in Series 25 kA
- Rated Uninterrupted Current (Iu):160 A
- Recommended Screw Driver:Main Circuit M6
- Release:TMD
- Release Type:TM
- RoHS Date:NA
- Setting Range:56...80 A
- Short-Circuit Performance Level:C
- Standards:IEC
- Sub-type:XT1
- Terminal Connection Type:Front
- Terminal Type:Bolt
- Tightening Torque:6 N·m
- Version:F
S$ 205.60
(exc. GST)
S$ 224.10
(inc. GST)
