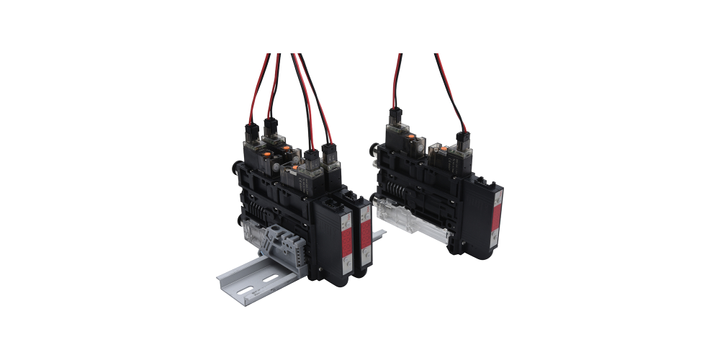

Misumi E-MZK10-N-4F Vacuum Generator Tipe Modul Seri Mz
Misumi E-MZK10-N-4F Vacuum Generator Tipe Modul Seri Mz
Merek: | MISUMI |
Model: | E-MZK10-N-4F |
Specifications
Please select at least one specification below.
Type
Pipes with Built-in Electromagnetic Valve
Body Material
Polyacetal
Nozzle Diameter
1
mm
Suction Flow
39 l/min
Performance
Small Flow Rate Type
Operating Pressure Range
0.15～0.7 Mpa
Operating Temp. Range
0～60 C
Vacuum Port One-Touch Coupling Size Diameter
6 mm
This spec is not available in the specification table.
Flow Consumption
35 l/min
This spec is not available in the specification table.
Ultimate Vacuum
92 kPa
This spec is not available in the specification table.
Air Supply Port One-Touch Coupling Size Diameter
6 mm
This spec is not available in the specification table.
Number of Manifolds
4 manifolds
This spec is not available in the specification table.
Deskripsi Produk
Rp 11.093.931
| Unit | Diskon | Harga Satuan |
|---|---|---|
| 1 | - | Rp 11.093.931 |
Kuantitas:
EA
Lead time diperlukan 21 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
