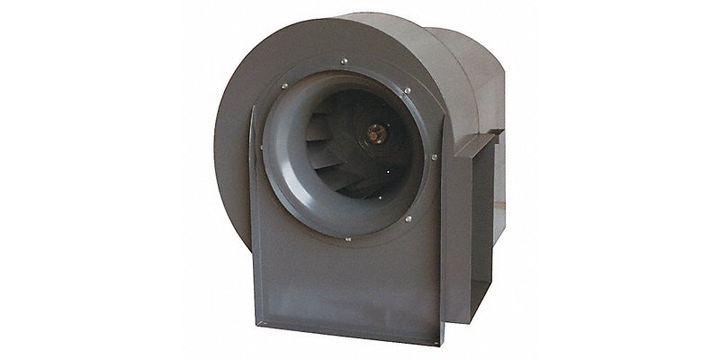

Blower Dayton 7K407 dengan Paket Penggerak 208-230/460 Volt
Blower Dayton 7K407 dengan Paket Penggerak 208-230/460 Volt
Merek:
DAYTON
Model:
7K407
Specifications
infotip-icon
View other Centrifugal Fans dimensions or variations
Please select at least one specification below.
Motor Enclosure Design
Totally Enclosed Fan-Cooled (TEFC)
Inlet Diameter
39 in
This spec is not available in the specification table.
Motor Horsepower
15 hp
This spec is not available in the specification table.
Standards
AMCA Air Performance Certified
This spec is not available in the specification table.
Outlet Width
28-1/2 in
This spec is not available in the specification table.
Overall Width
62-1/8 in
This spec is not available in the specification table.
Wheel Width
13 in
This spec is not available in the specification table.
Overall Depth
60-7/8 in
This spec is not available in the specification table.
Wheel Material
Steel
This spec is not available in the specification table.
Maximum Static Pressure
4-1/2 in wc
This spec is not available in the specification table.
Wheel Diameter
36-1/2 in
This spec is not available in the specification table.
Outlet Height
39-1/4 in
This spec is not available in the specification table.
Wheel Type
Backward-Inclined
This spec is not available in the specification table.
Maximum Inlet Air Temperature
250 Degrees F
This spec is not available in the specification table.
Rotation
CW
This spec is not available in the specification table.
Drive Type
Belt Drive
This spec is not available in the specification table.
Deskripsi Produk

Rp 263.732.344
UnitDiskonHarga Satuan
1-Rp 263.732.344
Kuantitas:
EA
Lead time diperlukan 6 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
