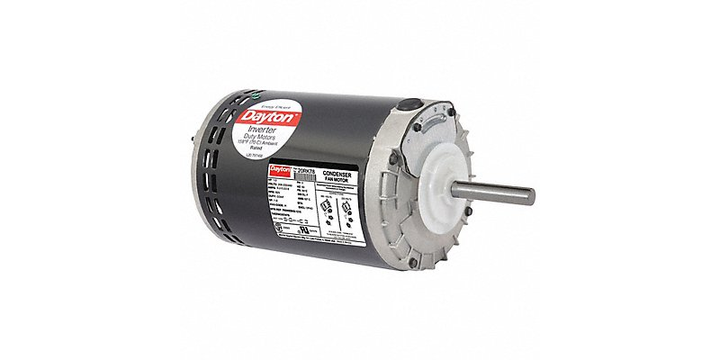

Motor Kipas Kondensor Dayton 20RK78 1 Hp 825 Rpm 60 Hz

DAYTON

View Brand

Motor Kipas Kondensor Dayton 20RK78 1 Hp 825 Rpm 60 Hz

Merek:	DAYTON
Model:	20RK78

Specifications

View other Electric Motors dimensions or variations

Shaft Length

3 in

Motor Mounting Type

Band

Motor Thermal Protection

T-Stat

Voltage

208-230/460V AC

Phase

Three

Motor Enclosure Design

Open Air-Over

Motor Application

HVAC/R

Motor Sub Application

Condenser Fan

Nameplate RPM

825

Motor Design

3-Phase

RPM Range

0-1,000

Voltage Compatibility

460V AC, 208-230/460V AC, 200-230/460V AC, 200-230/440V AC

Frame

56YZ

No. of Speeds

Motor Bearings

Ball

Max. Ambient Temperature

60 Degrees C

Motor Mounting Position

Vertical Shaft Up

Bearing Protection

Shaft Grounding Rings

Inverter Rated

Yes

Deskripsi Produk

Rp 19.857.504

Unit	Diskon	Harga Satuan
1	-	Rp 19.857.504

Kuantitas:

Lead time diperlukan 8 hari kerja.

Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
