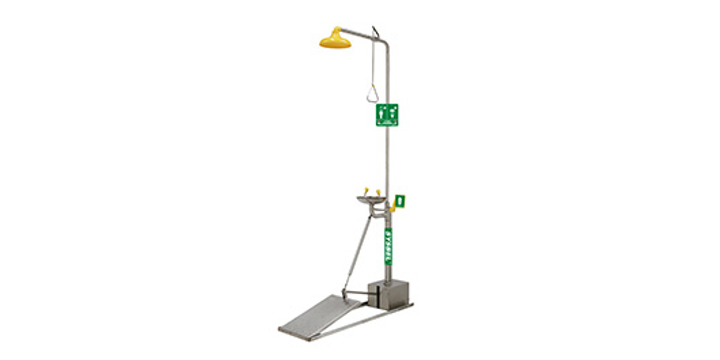

Sysbel WG7054A Ansi Z358.1- 2014 Composite Self-draining Emergency Eyewash Shower

Product Name

• Composite Self-Draining Emergency Eyewash Shower


Model

• WG7054A


Features and Advantages

• Automatically drains water after use to prevent corrosion or freezing in low temperatures

• Made of 304 stainless steel with pickling and passivation treatment for enhanced resistance to acid, alkali, salt, and oil-based chemicals

• Eyewash valve uses a two-piece ball valve with low operating force, ideal for emergencies

• Valve has excellent wear resistance and sealing, with a service life of over 300,000 cycles

• Connected via live joint for easy maintenance and secure sealing

• Pedal-controlled master switch for hands-free operation

• System auto-drains internal pipe water within 5 seconds after pedal release


Color

• Stainless steel natural finish


Flow Rate

• Eyewash: ≥ 11.4 L/min

• Shower: ≥ 75.7 L/min


Inlet

• Rc 1" (Height 60 mm)


Outlet

• Rc 1" (Height 40 mm)


Product Dimensions (L × W × H)

• 12 × 36 × 234 cm


Package Dimensions (L × W × H)

• 125 × 52 × 125 cm


Recommended Water Pressure

• 210 kPa


Certifications

• ANSI Z358.1-2014
