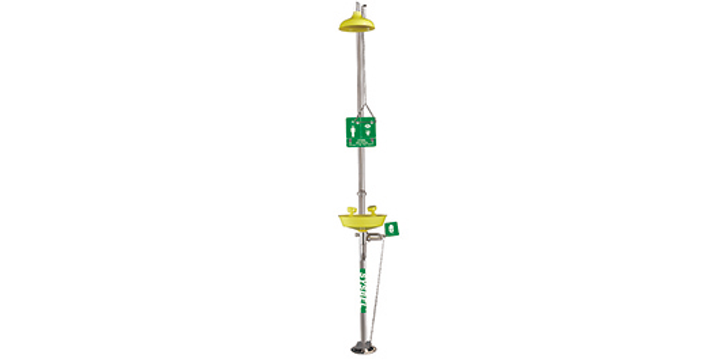

Sysbel WG7053FY Combination Emergency Safety Shower

Product Name
Combination Emergency Safety Shower with Eyewash

Model
WG7053FY

Application
Provide full-body relief from contamination fastly and effectively

Materials
AES plastic + 304 Stainless Steel

Product Features

• AES plastic has weather resistance properties and applies to indoors or outdoors

• 304 stainless steel is acid-proof and alkali-resistant, suitable for harsh environments

• Pull rod with triangular handle for easy shower activation

• Equal-length main pipe design allows compact packaging for space and cost savings

• Equipped with flat washer in quick coupling to prevent leakage

• Built-in flow regulator in the shower arm tube

• Shower head delivers evenly spread, high-volume flushing fluid

• Easily activated by push handle or foot pedal

• Hidden coin-slot faucet aerator is easy to remove and clean

• Dust cover is removed automatically when unit is activated

• Complies with ANSI Z358.1-2014 and AS 4775-2007

• HS CODE: 8424899990


Quick Compliance Guide

• Valve activates in ≤1 second and remains open until manually closed

• Must be connected to sufficient fluid supply for simultaneous use

• Shower height: 208.3–243.8 cm above floor

• Water supply: ≥75.7 LPM for 15 minutes

• Valve actuator: ≤175.3 cm from floor

• Spray diameter: ≥50.8 cm at 152.4 cm height

• Spray center: ≥40.6 cm from obstructions

• Eyewash height: 83.8–134.6 cm from floor, ≥15.3 cm from obstructions

• Eyewash flow: ≥11.4 LPM for 15 minutes

• Made from non-corrosive materials

• Located within 10 seconds (55 feet) of hazard, unobstructed

• Dust covers removed by water flow automatically

• Eyewash provides safe, low-velocity flow for eyes and face


Specifications

• Main material: 304 stainless steel

• Eyewash flow rate: 11.4 L/min

• Shower flow rate: 75.7 L/min

• Water bowl (AES plastic): Ø32 × 9.5 cm – Yes

• Water bowl (304 SS): Ø32 × 9.5 cm – No

• Shower head (AES plastic): Ø25.5 × 7.5 cm – Yes

• Shower head (304 SS): Ø25.5 × 7.5 cm – No

• Valve ½″: Yes

• Valve 1″: Yes

• Inlet: 1″

• Outlet: 1″

• Pressure: 210 kPa

• Packing size (L×W×H): 120 × 40 × 26.5 cm

• Gross weight: 124 kg

• Certifications: ANSI Z358.1, AS 4775, CSA, CE
