Sysbel WG7053F Combination Emergency Safety Shower

Product Name

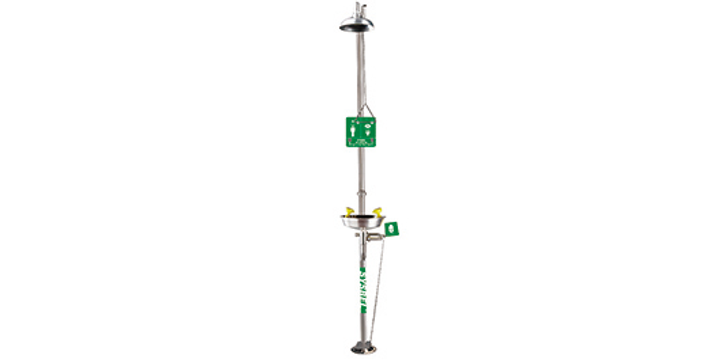

Combination Emergency Safety Shower with Eyewash
Model: WG7053F

Application

Provides full-body relief from contamination quickly and effectively

Materials

• AES Plastic

• 304 Stainless Steel


Product Features

1. Weather-resistant AES plastic suitable for indoor or outdoor use

2. 304 SS provides excellent acid and alkali resistance for harsh environments

3. Easy-to-operate pull rod with triangular handle for shower activation

4. Equal-length main pipe design enables compact packaging for space and cost savings

5. Flat washer in quick coupling prevents leakage at joints

6. Built-in flow regulator in shower arm tube

7. Shower head delivers evenly spread, high-volume flushing fluid with controlled flow

8. Activated easily by push handle or foot pedal

9. Faucet aerator with hidden coin slot design for easy removal and cleaning

10. Dust cover automatically removed upon activation

11. Compliant with ANSI Z358.1-2014 and AS 4775-2007

12. HS Code: 8424899990


Quick Compliance Guide (ANSI Z358.1-2014 & AS 4775-2007)

1. Valve activates in 1 second or less and remains open until manually closed

2. Must connect to a system supplying adequate flushing fluid for simultaneous operation

3. Shower fluid column height: 208.3 cm (82") to 243.8 cm (96")

4. Water supply must deliver at least 75.7 LPM (20 GPM) for 15 minutes

5. Valve actuator must not exceed 175.3 cm (69") above floor

6. Spray diameter: minimum 50.8 cm (20") at 152.4 cm (60") height

7. Center of spray must be ≥ 40.6 cm (16") from any obstruction

8. Eyewash flow height: 83.8 cm (33") to 134.6 cm (53") above floor and ≥ 15.3 cm (6") from wall

9. Eyewash delivers ≥ 11.4 LPM (3 GPM) for 15 minutes

10. Made of corrosion-resistant materials compatible with flushing fluid

11. Location: within 10 seconds (55 ft) of hazard, same level, free of obstructions

12. Dust covers must be auto-removed by water flow to prevent airborne contamination

13. Eyewash delivers water to both eyes and face gently without causing injury
