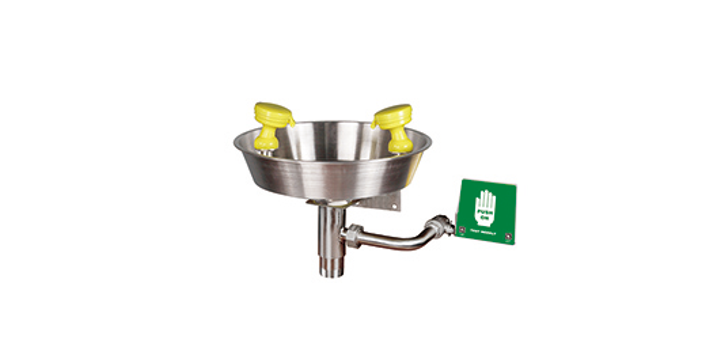

Sysbel WG7023 Wall Mounted Eye/Face Wash WG7023

The SYSBEL wall-mounted eyewash can be mounted on a wall or vertical fittings and is equipped with a wall mount, basin, ball valve and sprinkler head. The uniquely designed nozzle provides a lower rate of water dispensing, and the aerator and microporous dispense independently, providing a softer flow of water while rinsing the face and face. The entire emergency eyewash and shower equipment is fully compliant with ANSI Z358.1-2014 and Australian Standard AS 4775-2007 of the American National Standards Institute and CSA certified.

1. Applicable environment: It is suitable for installation on the wall or directly fixed on the riser of appropriate specifications, which can be connected to the external drainage pipe fittings, guide and discharge the flushing liquid, and keep the ground clean and tidy
2. WG7023 is equipped with 304 stainless steel basin, and WG7023Y is equipped with AES engineering plastic basin
3. Starting device: 304 stainless steel pusher
4. Water pressure: not less than 210kPa (30psi, 2bar, 2.1Kgf/cm2 kgf/cm2)
5. Water output: higher than the requirements of 11.4LPM (3.0GPM) specified in the standard
6. Meets ANSI Z358.1-2014 and AS 4775-2007 standards
7. Tested and certified by CSA

Application:

• Eye/face wash for wall mounting

• Bowl guides wastewater to drain and keeps floor clean


Materials:

• AES plastic + 304 Stainless Steel


Product Features:

• AES plastic offers weather resistance, suitable for indoor or outdoor use

• 304 stainless steel provides excellent acid and alkali resistance, ideal for harsh environments

• Easy activation via push handle

• Faucet aerator with hidden coin slot design for easy removal and cleaning

• Dust cover automatically removed upon activation

• Complies with ANSI Z358.1-2014 and AS 4775-2007

• HS CODE: 8424899990
