Speedaire 22UX74 Air Motor 1.7 Hp 78 Cfm 1/4 Innpt

View Brand

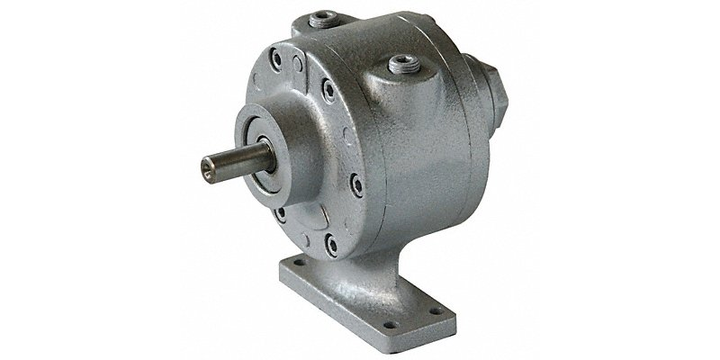

Speedaire 22UX74 Air Motor 1.7 Hp 78 Cfm 1/4 Innpt

Brand:	SPEEDAIRE
Model:	22UX74

Specifications

View other Air Motors dimensions or variations

Shaft Length

1-1/8 in

Maximum Torque

36 in-lb

Number of Vanes

Output Power @ Maximum Speed

1.7 hp

Housing Material

Cast Iron, Aluminum

Shaft Diameter

1/2 in

No Load Speed

3,000 RPM

Maximum Flow Rate

78 cfm

Rotation

CW/CCW

Output Shaft Type

Keyed, Woodruff Keyed

Air Inlet Port

1/4 in NPT

Mount Type

Foot

Product Description

US $ 286.59

Units	Discount	Unit Price
1	-	US $ 286.59

Quantity:

Lead time of 8 working days required.

Item will be ready to dispatch within the lead time specified.
