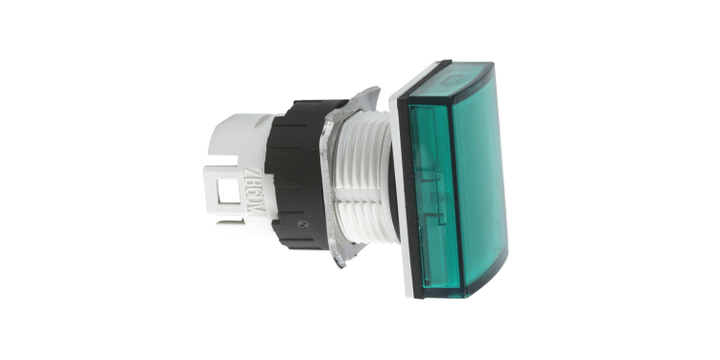

Schneider Electric ZB6DV3 Head for Pilot Light, Harmony XB6, Rectangular Green, 16mm, Integral Led
Schneider Electric ZB6DV3 Head for Pilot Light, Harmony XB6, Rectangular Green, 16mm, Integral Led
Brand: | SCHNEIDER ELECTRIC |
Model: | ZB6DV3 |
Specifications
Please select at least one specification below.
Standards
EN/IEC 60947-5-1
JIS C 852
UL 508
JIS C 4520
EN/IEC 60947-5-5
EN/IEC 60947-1
CSA C22.2 No 14
IP Degree of Protection
IP65 conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Mounting Diameter
16 mm
Shape Of Signaling Unit Head
Rectangular
Cap/Operator Or Lens Colour
Green
Product or component type
Head for pilot light
This spec is not available in the specification table.
Range of product
Harmony XB6
This spec is not available in the specification table.
Ambient air temperature for storage
-40…70 °C
This spec is not available in the specification table.
Product Certifications
GOST
CCC
UL
CSA
This spec is not available in the specification table.
Vibration Resistance
+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Electrical Shock Protection Class
Class II conforming to IEC 61140
This spec is not available in the specification table.
Nema Degree Of Protection
NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94
This spec is not available in the specification table.
Cad Overall Width
24 mm
This spec is not available in the specification table.
Cad Overall Height
18 mm
This spec is not available in the specification table.
Cad Overall Depth
33 mm
This spec is not available in the specification table.
Bezel Material
Plastic
This spec is not available in the specification table.
Product Description
US $ 8.15
Quantity:
EA
This item is sold by0
Schneider Electric
