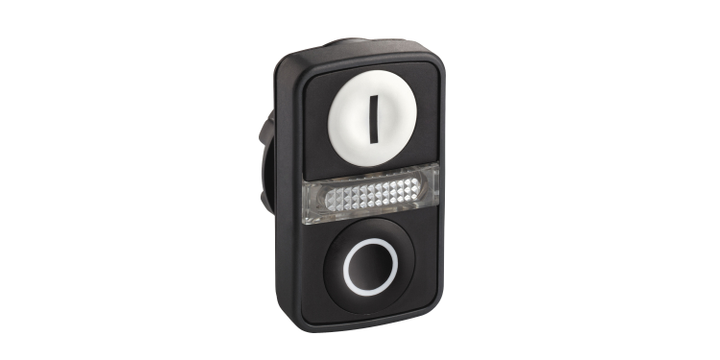

Schneider Electric ZB5AW7A1721 Illuminated Double Headed Push Button Head, Harmony XB5, Plastic, 22mm, 1 White Flush Marked I + 1 Pilot Light + 1 Black Flush Marked O
Schneider Electric ZB5AW7A1721 Illuminated Double Headed Push Button Head, Harmony XB5, Plastic, 22mm, 1 White Flush Marked I + 1 Pilot Light + 1 Black Flush Marked O
Brand: | SCHNEIDER ELECTRIC |
Model: | ZB5AW7A1721 |
Specifications
Please select at least one specification below.
Range of Product
Harmony XB5
Standard
EN/IEC 60947-1
JIS C8201-5-1
EN/IEC 60947-5-1
UL 508
CSA C22.2 No 14
EN/IEC 60947-5-4
JIS C8201-1
IP Degree of Protection
IP66
IP67
IP69
IP69K
Ambient Air Temperature for Operation
-25…70 °C
Mechanical Durability
1000000 cycles
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Mounting Diameter
22 mm
Shape of Signaling Unit Head
Rectangular
Bezel Material
Dark grey plastic
Head Type
Standard
Device Short Name
ZB5
This spec is not available in the specification table.
Product or Component Type
Head for illuminated double-headed push-button
This spec is not available in the specification table.
Ambient Air Temperature for Storage
-40…70 °C
This spec is not available in the specification table.
Device Presentation
Basic sub-assemblies
This spec is not available in the specification table.
Certifications
BV
DNV
CSA
GL
LROS (Lloyds register of shipping)
UL listed
This spec is not available in the specification table.
IK Degree of Protection
IK05 conforming to IEC 50102
This spec is not available in the specification table.
Product Compatibility
Integral LED
This spec is not available in the specification table.
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
This spec is not available in the specification table.
Electrical Shock Protection Class
Class II conforming to IEC 60536
This spec is not available in the specification table.
Resistance to High Pressure Washer
7000000 Pa at 55 °C, distance : 0.1 m
This spec is not available in the specification table.
NEMA degree of Protection
NEMA 13
NEMA 4X
This spec is not available in the specification table.
Type of Operator
spring return
This spec is not available in the specification table.
Operator Profile
White flush, I (black)
Black flush, O (white)
This spec is not available in the specification table.
CAD Overall Width
30 mm
This spec is not available in the specification table.
CAD Overall Height
50 mm
This spec is not available in the specification table.
CAD Overall Depth
30 mm
This spec is not available in the specification table.
Station Name
XALD 1 cut-out
This spec is not available in the specification table.
Colour of Marking
Black marking when white caps
This spec is not available in the specification table.
Operators Description
White ''I'' - black ''O''
This spec is not available in the specification table.
Product Description
US $ 17.29
