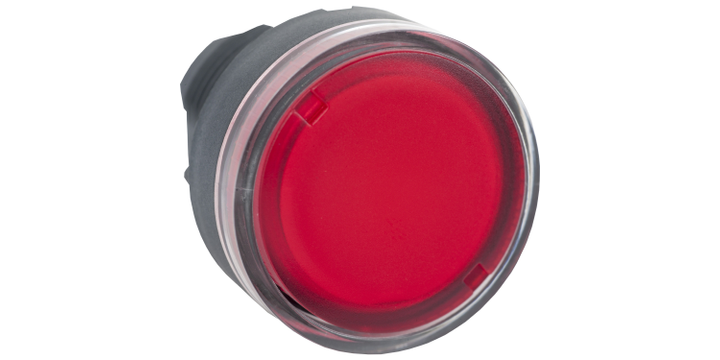

Schneider Electric ZB5AW34 Head for Illuminated Push Button, Harmony XB5, Plastic, Flush, Red, 22mm, Spring Return, Plain Lens for BA9s Bulb
Schneider Electric ZB5AW34 Head for Illuminated Push Button, Harmony XB5, Plastic, Flush, Red, 22mm, Spring Return, Plain Lens for BA9s Bulb
Brand: | SCHNEIDER ELECTRIC |
Model: | ZB5AW34 |
Specifications
Please select at least one specification below.
Range of Product
Harmony XB5
Standard
JIS C8201-5-1
UL 508
GB 14048.5
IEC 60947-5-4
IEC 60947-5-1
CSA C22.2 No 14
IEC 60947-1
JIS C8201-1
IP Degree of Protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K
Ambient Air Temperature for Operation
-40…55 °C
Mechanical Durability
10000000 cycles
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Mounting Diameter
22 mm
Shape of Signaling Unit Head
Round
Cap/Operator or Lens Colour
Red
Bezel Material
Dark grey plastic
Head Type
Standard
Device Short Name
ZB5
This spec is not available in the specification table.
Product or Component Type
Head for illuminated push-button
This spec is not available in the specification table.
Overvoltage Category
Class II conforming to IEC 60536
This spec is not available in the specification table.
Ambient Air Temperature for Storage
-40…70 °C
This spec is not available in the specification table.
Marking
Unmarked
This spec is not available in the specification table.
Device Presentation
Basic sub-assemblies
This spec is not available in the specification table.
Certifications
GL
CSA
UL listed
BV
LROS (Lloyds register of shipping)
DNV
This spec is not available in the specification table.
IK Degree of Protection
IK05 conforming to IEC 62262
This spec is not available in the specification table.
Product Compatibility
BA 9s
This spec is not available in the specification table.
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
This spec is not available in the specification table.
Resistance to High Pressure Washer
7000000 Pa at 55 °C, distance : 0.1 m
This spec is not available in the specification table.
Electrical Composition Code
M7 for <6 contacts using single blocks in front mounting with BA 9s
M8 for <6 contacts using single and double blocks in front mounting with BA 9s
M9 for <2 contacts using single blocks in front mounting with BA 9s and transformer
MF2 for <2 contacts using single blocks in front mounting with BA 9s
This spec is not available in the specification table.
Main Group
Illum push-button
This spec is not available in the specification table.
Group of Product
Flush push BA9s
This spec is not available in the specification table.
Protective Treatment
TC
This spec is not available in the specification table.
NEMA degree of Protection
NEMA 13
NEMA 4X
This spec is not available in the specification table.
Operator Additional Information
With plain lens
This spec is not available in the specification table.
Type of Operator
spring return
This spec is not available in the specification table.
Operator Profile
Red flush, unmarked
This spec is not available in the specification table.
CAD Overall Width
29 mm
This spec is not available in the specification table.
CAD Overall Height
29 mm
This spec is not available in the specification table.
CAD Overall Depth
32 mm
This spec is not available in the specification table.
Station Name
XALD 1...5 cut-outs
XALK 2...5 cut-outs
This spec is not available in the specification table.
Product Description
US $ 7.66
