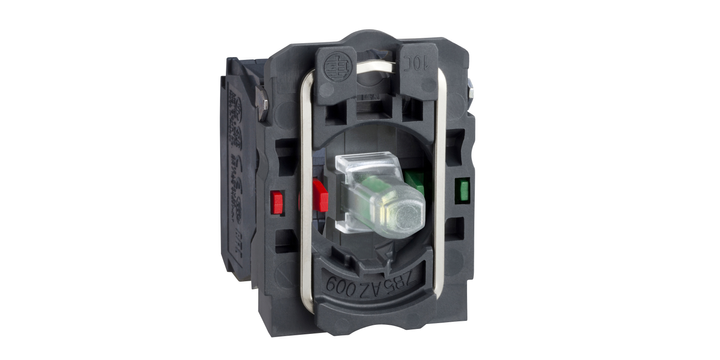

Schneider Electric ZB5AW0B35 Se Ill. 24V Led P/L Body(green)

Units	Discount	Unit Price
1	-	US $ 18.53

Pilot Lights

141 Items

Width

30 mm, 29 mm, 16 mm, 24 mm

Depth

78 mm, 53 mm, 51 mm, 34 mm, 57 mm

Standards

JIS C 852 UL 508 JIS C8201-5-1 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-5 EN/IEC 60947-5-1 JIS C8201-1, UL 508 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-5-5 JIS C 852 CSA C22.2 No 14 EN/IEC 60947-1, EN/IEC 60947-5-5 JIS C 852 EN/IEC 60947-1 UL 508 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-1 JIS C8201-1, EN/IEC 60947-5-1 EN/IEC 60947-5-5 UL 508 JIS C 852 JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-1 JIS C8201-1, CSA C22.2 No 14 EN/IEC 60947-5-1

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1, Threaded connector: clamping capacity 1 x 0.2...1 x 1.5 mm², Tag for Faston connectors: 2.8 x 0.5 mm Tag for soldering connectors, Faston connectors, connection size: 2.8 x 0.5 mm

Height

42 mm, 47 mm, 82 mm, 18 mm, 12 mm

IP Degree of Protection

IP2X, IP67, IP54, IP40, IP65, IP66, IP67, IP69(IP69K)

Ambient air temperature for operation

-40…55 °C, -40…70 °C, -25…70 °C, -25…55 °C, -35…70 °C

Brand:	SCHNEIDER ELECTRIC
Model:	ZB5AW0B35
