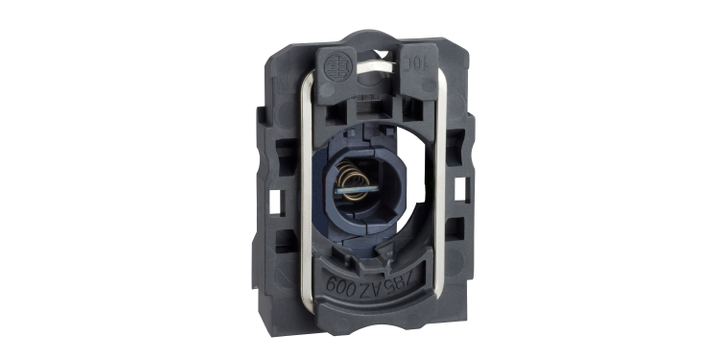

Schneider Electric ZB5AV6 Light Block With Body Fixing Collar, Harmony XB5, Plastic, for BA9s Bulb, Lt 250V
Schneider Electric ZB5AV6 Light Block With Body Fixing Collar, Harmony XB5, Plastic, for BA9s Bulb, Lt 250V
Brand: | SCHNEIDER ELECTRIC |
Model: | ZB5AV6 |
Specifications
Please select at least one specification below.
Range Of Product
Harmony XB5
Standards
IEC 60947-5-1
CSA C22.2 No 14
IEC 60947-1
IEC 60947-5-4
JIS C8201-5-1
UL 508
JIS C8201-1
[Ui] Rated Insulation Voltage
600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage
6 kV conforming to IEC 60947-1
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Ambient Air Temperature For Operation
-40…70 °C
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
[Us] Rated Supply Voltage
<= 250 V
Shape Of Screw Head
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
Device Short Name
ZB5
This spec is not available in the specification table.
Product Or Component Type
Complete body/light block assembly
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Tightening Torque
0.8…1.2 N.m conforming to IEC 60947-1
This spec is not available in the specification table.
Device Presentation
Basic sub-assemblies
This spec is not available in the specification table.
Product Certifications
UL listed
CSA
DNV
BV
GL
LROS (Lloyds register of shipping)
This spec is not available in the specification table.
Electrical Shock Protection Class
Class II conforming to IEC 60536
This spec is not available in the specification table.
Protective Treatment
TH
This spec is not available in the specification table.
Light Source
Bulb not included
This spec is not available in the specification table.
Bulb Base
BA 9s
This spec is not available in the specification table.
Terminals Description Iso N°1
(X1-X2)PL
This spec is not available in the specification table.
Signalling Type
Steady
This spec is not available in the specification table.
Light Block Supply
Direct <2.4 W
This spec is not available in the specification table.
Cad Overall Width
30 mm
This spec is not available in the specification table.
Cad Overall Height
42 mm
This spec is not available in the specification table.
Cad Overall Depth
32 mm
This spec is not available in the specification table.
Fixing Collar Material
Plastic
This spec is not available in the specification table.
Product Description
US $ 9.26
Quantity:
EA
