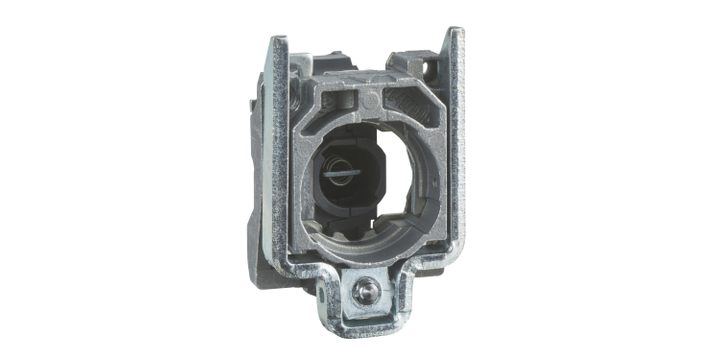

Schneider Electric ZB4BV6 Light Block With Body Fixing Collar, Harmony XB4, Metal, for BA9s Bulb, Lt 250V
Schneider Electric ZB4BV6 Light Block With Body Fixing Collar, Harmony XB4, Metal, for BA9s Bulb, Lt 250V
Brand: | SCHNEIDER ELECTRIC |
Model: | ZB4BV6 |
Specifications
Please select at least one specification below.
Range Of Product
Harmony XB4
Standards
IEC 60947-5-5
IEC 60947-5-4
IEC 60947-1
IEC 60947-5-1
UL 508
CSA C22.2 No 14
JIS C8201-5-1
JIS C8201-1
[Ui] Rated Insulation Voltage
600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage
6 kV conforming to IEC 60947-1
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end
Screw clamp terminals, >= 1 x 0.22 mm² without cable end
Ambient Air Temperature For Operation
-40…70 °C
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
[Us] Rated Supply Voltage
<= 250 V
Shape Of Screw Head
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
Device Short Name
ZB4
This spec is not available in the specification table.
Product Or Component Type
Complete body/light block assembly
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Tightening Torque
0.8…1.2 N.m conforming to IEC 60947-1
This spec is not available in the specification table.
Device Presentation
Basic sub-assemblies
This spec is not available in the specification table.
Product Certifications
BV
CSA
UL listed
LROS (Lloyds register of shipping)
GL
DNV
This spec is not available in the specification table.
Electrical Shock Protection Class
Class I conforming to IEC 60536
This spec is not available in the specification table.
Protective Treatment
TH
This spec is not available in the specification table.
Light Source
Bulb not included
This spec is not available in the specification table.
Bulb Base
BA 9s
This spec is not available in the specification table.
Terminals Description Iso N°1
(X1-X2)PL
This spec is not available in the specification table.
Signalling Type
Steady
This spec is not available in the specification table.
Light Block Supply
Direct <2.4 W
This spec is not available in the specification table.
Cad Overall Width
30 mm
This spec is not available in the specification table.
Cad Overall Height
47 mm
This spec is not available in the specification table.
Cad Overall Depth
37 mm
This spec is not available in the specification table.
Fixing Collar Material
Zamak
This spec is not available in the specification table.
Product Description
US $ 11.58
