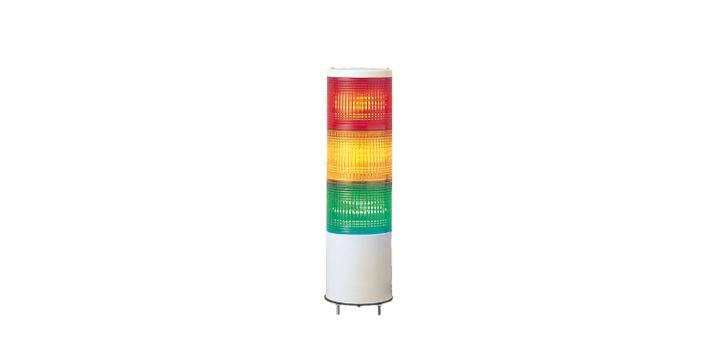

Schneider Electric XVC4B3K Monolithic Precabled Tower Light, Harmony Xvc, Plastic, Red Orange Green, 40mm, Base Mounting, Steady, IP54, 24V Ac Dc
Schneider Electric XVC4B3K Monolithic Precabled Tower Light, Harmony Xvc, Plastic, Red Orange Green, 40mm, Base Mounting, Steady, IP54, 24V Ac Dc
Brand: | SCHNEIDER ELECTRIC |
Model: | XVC4B3K |
Specifications
Please select at least one specification below.
Material
Polycarbonate: illuminated unit
ABS (acrylonitrile butadiene-styrene): base unit
PBT + ABS (UL94HB): top cover
[Uimp] Rated Impulse Withstand Voltage
0.8 kV
Ip Degree Of Protection
IP54 flat surface installation conforming to IEC 60529
Product Certifications
UL
Cable Cross Section
0.33 mm²
Mounting Diameter
40 mm
Current Consumption
75 mA
Light Source
LED steady red
LED steady or flashing orange
LED steady or flashing green
Standards
IEC 61000-6-2
IEC 61000-6-3
Product Or Component Type
Complete pre-wired monolithic tower light
This spec is not available in the specification table.
Range Of Product
Harmony XVC4
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-10…50 °C
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-35…70 °C
This spec is not available in the specification table.
Component Name
XVC
This spec is not available in the specification table.
Beacon Or Indicator Bank Unit Type
3 illuminated units
This spec is not available in the specification table.
Device Short Name
XVC
This spec is not available in the specification table.
Overvoltage Category
Class II conforming to IEC 61140
This spec is not available in the specification table.
Marking
CE
This spec is not available in the specification table.
[Us] Rated Supply Voltage
24 V
This spec is not available in the specification table.
Electrical Shock Protection Class
Class II conforming to IEC 61140
This spec is not available in the specification table.
Awg Gauge
AWG 22
This spec is not available in the specification table.
Mounting Location
On base
This spec is not available in the specification table.
Cable Length
500 mm
This spec is not available in the specification table.
Protective Treatment
TC
This spec is not available in the specification table.
Supply Circuit Type
AC/DC
This spec is not available in the specification table.
Product Mounting
On base
This spec is not available in the specification table.
Sound Signalling
Without
This spec is not available in the specification table.
Flashing Frequency
1 Hz
This spec is not available in the specification table.
Product Description
US $ 132.94
