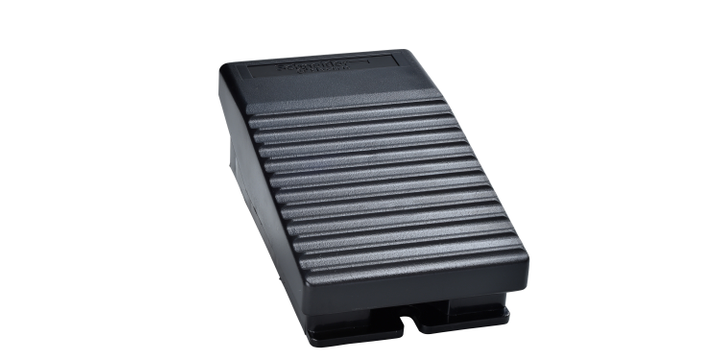

Schneider Electric XPEA111 Single Foot Switch, Harmony Xpe, Plastic, Black, Without Cover, 1 Step, 2 Contacts 1NC+NO, IP43

Main:

• Range of product: Harmony XPE
• Product or component type: Foot switch
• Material: Plastic
• Foot switch type: Single foot switch
• Device short name: XPEA
• Trigger mechanism: Without trigger mechanism
• Contact operation: 1 step
• Contacts type and composition: 2 NC + NO
• Colour: Black

Complementary:

• Positive opening: With conforming to IEC 60947-5-1 appendix K
• Connections - Terminals:
• Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end
• Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
• Cable entry:
• 1 plain hole for M20 cable gland
• 1 plain hole for M16 cable gland
• Mechanical Durability: 2,000,000 cycles
• Rated operational current ([Ie]):
• 3 A, 240 V, AC-15, A300
• 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A
• Rated insulation voltage ([Ui]):
• 500 V (pollution degree 3) conforming to IEC 60947-1
• 500 V (pollution degree 3) conforming to NF C 20-040 group C
• 500 V (pollution degree 3) conforming to VDE 0110 group C
• 300 V conforming to UL 508
• 300 V conforming to CSA C22.2 No 14
• Rated impulse withstand voltage ([Uimp]): 6 kV conforming to IEC 60947-1
• Maximum resistance across terminals:
• 25 MOhm conforming to IEC 60255-7 category 3
• 25 MOhm conforming to NF C 93-050 method A
• Short-circuit protection:
• 10 A cartridge fuse type gG conforming to IEC 60947-5-1
• 10 A cartridge fuse type gG conforming to VDE 0660-200
• Rated operational power in W:
• 10 W DC-13, operating rate <60 cyc/mn, 5,000,000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
• 4 W DC-13, operating rate <60 cyc/mn, 5,000,000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
• 7 W DC-13, operating rate <60 cyc/mn, 5,000,000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
• Net weight: 0.295 kg

Environment:

• Standards: IEC 60947-5-1
• Protective treatment: TH
• Ambient air temperature:
• Operation: -25…55 °C
• Storage: -40…70 °C
• Vibration resistance: 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
• Shock resistance: 25 gn conforming to IEC 60068-2-27
• Overvoltage category:
• Class II conforming to IEC 61140
• Class II conforming to NF C 20-030
• IP degree of protection: IP43 conforming to IEC 60529
