Schneider Electric XB7EV03BP XB7, Panel Mount Green Led Pilot Light, 22mm Cutout, IP20, IP65, 26.4 V Ac, 30V Dc

View Brand

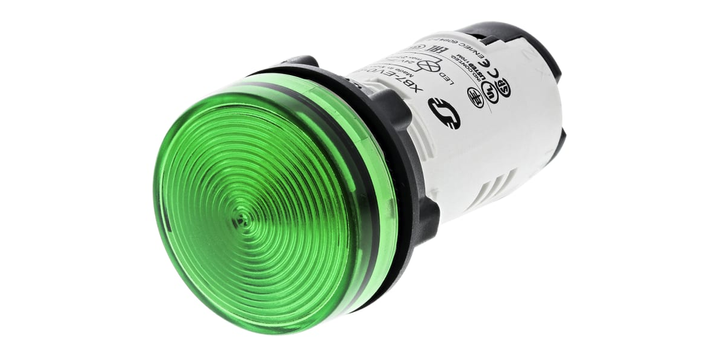

Schneider Electric XB7EV03BP XB7, Panel Mount Green Led Pilot Light, 22mm Cutout, IP20, IP65, 26.4 V Ac, 30V Dc

Brand:	SCHNEIDER ELECTRIC
Model:	XB7EV03BP

Specifications

View other Pilot Lights dimensions or variations

IP Degree of Protection

IP20, IP65

Cap/Operator Or Lens Colour

Green

Current Rating

27 mA

Voltage Rating

26.4 V ac, 30 V dc

Range of product

Harmony XB7

Series Name

XB7

Mounting Type

Panel Mount

Body Material

Plastic

Terminal Type

Screw

Pilot Light Type

Pilot Light Complete Unit

Cutout Diameter

22 mm

Lamp Type

LED

Better World Product

Yes

Better World Verification

Green Premium

Pilot Light Material

Plastic

Product Description

US $ 20.73

Quantity:

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Pilot Lights

142 Items

Width

30 mm, 24 mm, 16 mm, 12 mm

Depth

78 mm, 53 mm, 57 mm, 51 mm, 34 mm

Standards

JIS C 852 UL 508 JIS C8201-5-1 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-5 EN/IEC 60947-5-1 JIS C8201-1, UL 508 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-5-5 JIS C 852 CSA C22.2 No 14 EN/IEC 60947-1, EN/IEC 60947-5-5 JIS C 852 EN/IEC 60947-1 UL 508 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-1 JIS C8201-1, EN/IEC 60947-5-1 EN/IEC 60947-5-5 UL 508 JIS C 852 JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-1 JIS C8201-1, CSA C22.2 No 14 EN/IEC 60947-5-1

Connections - terminals

Faston connectors, connection size: 6.35 x 0.8 mm conforming to IEC 60947-1 Forked type tag connectors, connection size: 6.5 mm conforming to IEC 60947-1 Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1, Threaded connector: clamping capacity 1 x 0.2...1 x 1.5 mm², Tag for Faston connectors: 2.8 x 0.5 mm Tag for soldering connectors, Faston connectors, connection size: 2.8 x 0.5 mm

Height

47 mm, 29 mm, 42 mm, 82 mm, 18 mm

IP Degree of Protection

IP67, IP54, IP66, IP65, IP66, IP67, IP69(IP69K)

Ambient air temperature for operation

-25…70 °C, -25…55 °C, -40…70 °C, -40…55 °C, -35…70 °C
