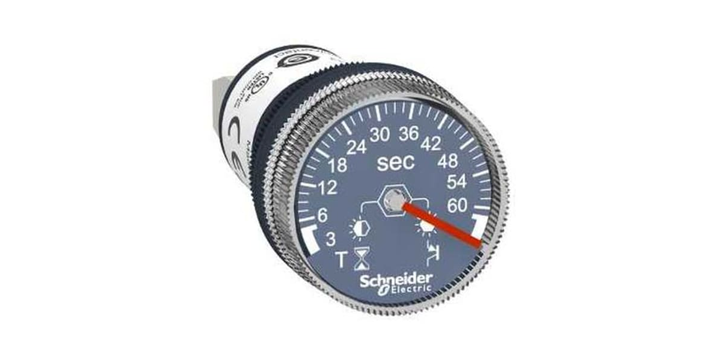

Schneider Electric XB5DTB23 Harmony XB5 Series Panel Mount Timer Relay, 24V Dc, 3 → 60s, 1-Function

View Brand

Schneider Electric XB5DTB23 Harmony XB5 Series Panel Mount Timer Relay, 24V Dc, 3 → 60s, 1-Function

Brand:	SCHNEIDER ELECTRIC
Model:	XB5DTB23

Specifications

View other Timer Relay dimensions or variations

Series

Harmony XB5

Mounting Type

Panel Mount

Supply Voltage

24V dc

Maximum Current

10 A

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+60°C

Terminal Type

Screw

Time Range

3 → 60s

Number of Timer Functions

Single

Maximum Voltage

24 V dc

Minimum Voltage

24 V

Length

62 mm

Power Supply

External

Minimum Current

0.01 A

Time Delay

5ms

Better World Product

Yes

Better World Verification

Green Premium

Product Description

US $ 117.34
