Schneider Electric XB4BVM1EX XB4 White Pilot Light Complete, 22mm Cutout, IP54, Round, 240V

View Brand

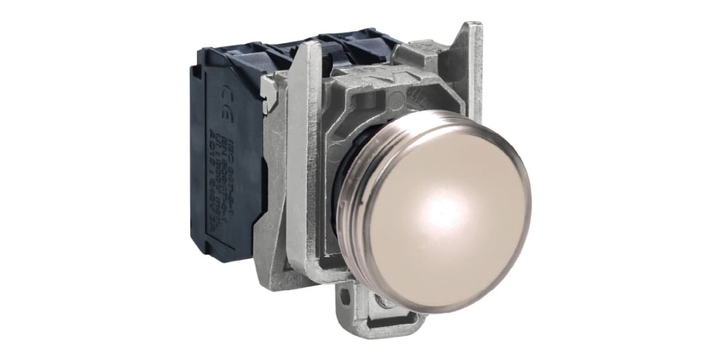

Schneider Electric XB4BVM1EX XB4 White Pilot Light Complete, 22mm Cutout, IP54, Round, 240V

Brand:	SCHNEIDER ELECTRIC
Model:	XB4BVM1EX

Specifications

View other Pilot Lights dimensions or variations

IP Degree of Protection

IP54

Cap/Operator Or Lens Colour

White

Current Rating

14 mA

Voltage Rating

240 V

Range of product

Harmony XB4

Series Name

XB4

Pilot Light Type

Pilot Light Complete Unit

Cutout Diameter

22 mm

Better World Product

Yes

Better World Verification

Green Premium

Product Description

US $ 112.14

Quantity:

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Pilot Lights

142 Items

Width

30 mm, 24 mm, 16 mm, 12 mm

Depth

78 mm, 53 mm, 57 mm, 51 mm, 34 mm

Standards

JIS C 852 UL 508 JIS C8201-5-1 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-5 EN/IEC 60947-5-1 JIS C8201-1, UL 508 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-5-5 JIS C 852 CSA C22.2 No 14 EN/IEC 60947-1, EN/IEC 60947-5-5 JIS C 852 EN/IEC 60947-1 UL 508 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-1 JIS C8201-1, EN/IEC 60947-5-1 EN/IEC 60947-5-5 UL 508 JIS C 852 JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-1 JIS C8201-1, CSA C22.2 No 14 EN/IEC 60947-5-1

Connections - terminals

Faston connectors, connection size: 6.35 x 0.8 mm conforming to IEC 60947-1 Forked type tag connectors, connection size: 6.5 mm conforming to IEC 60947-1 Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1, Threaded connector: clamping capacity 1 x 0.2...1 x 1.5 mm², Tag for Faston connectors: 2.8 x 0.5 mm Tag for soldering connectors, Faston connectors, connection size: 2.8 x 0.5 mm

Height

47 mm, 29 mm, 42 mm, 82 mm, 18 mm

IP Degree of Protection

IP67, IP54, IP66, IP65, IP66, IP67, IP69(IP69K)

Ambient air temperature for operation

-25…70 °C, -25…55 °C, -40…70 °C, -40…55 °C, -35…70 °C
