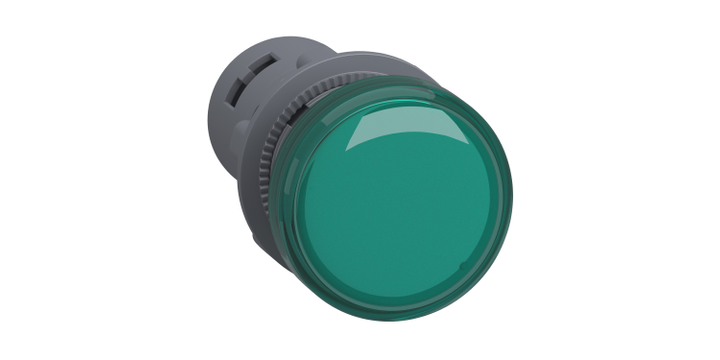

Schneider Electric XA2EVB3LC Monolithic Pilot Light, Easy Harmony XA2, Plastic, Green, 22mm, Integral Led, Screw Clamp Terminals, 24V Ac Dc
Schneider Electric XA2EVB3LC Monolithic Pilot Light, Easy Harmony XA2, Plastic, Green, 22mm, Integral Led, Screw Clamp Terminals, 24V Ac Dc
Brand: | SCHNEIDER ELECTRIC |
Model: | XA2EVB3LC |
Specifications
Please select at least one specification below.
Width
29 mm
Depth
53 mm
Standards
IEC 60947-5-1
GB 14048.5
GB 14048.1
IEC 60947-1
IEC 60529
IEC 50102
Connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1
Height
29 mm
IP Degree of Protection
IP65 conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
Shock Resistance
30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
[Us] Rated Supply Voltage
24 V
Mounting Diameter
22.5 mm
Shape Of Signaling Unit Head
Round
Cap/Operator Or Lens Colour
Green
Current Consumption
<= 20 mA
Product or component type
Monolithic pilot light
This spec is not available in the specification table.
Range of product
Easy Harmony XA2
This spec is not available in the specification table.
[Ui] rated insulation voltage
400 V (pollution degree 3) conforming to IEC 60947-1
This spec is not available in the specification table.
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-1
This spec is not available in the specification table.
Overvoltage category
Class I conforming to IEC 536
This spec is not available in the specification table.
Ambient air temperature for storage
-40…70 °C
This spec is not available in the specification table.
Device mounting
Fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1
This spec is not available in the specification table.
Fixing Mode
Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m)
This spec is not available in the specification table.
Fixing Center
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
This spec is not available in the specification table.
Product Certifications
CCC
CE
This spec is not available in the specification table.
Ik Degree Of Protection
IK05
This spec is not available in the specification table.
Vibration Resistance
5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Supply Voltage Limits
0.8…1.2 V AC/DC
This spec is not available in the specification table.
Service Life
40000 h at rated voltage and 25 °C
This spec is not available in the specification table.
Light Source
LED
This spec is not available in the specification table.
Bulb Base
Integral LED
This spec is not available in the specification table.
Terminals Description Iso N°1
(X1-X2)PL
This spec is not available in the specification table.
Shape Of Screw Head
Cross compatible with Philips No 2 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
This spec is not available in the specification table.
Signalling Type
Steady
This spec is not available in the specification table.
Product Description
US $ 6.75
