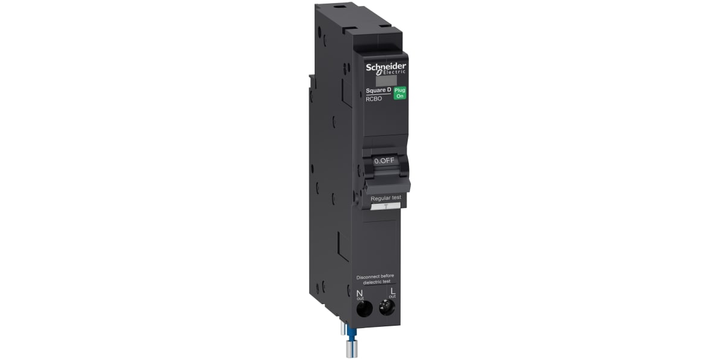

Schneider Electric QO110B10RCBO30F Square D Qovs Mcb, 1P, 10A, Type Ac

Schneider Electric QO110B10RCBO30F Square D Qovs Mcb, 1P, 10A, Type Ac

Brand:	SCHNEIDER ELECTRIC
Model:	QO110B10RCBO30F

Specifications

View other Miniature Circuit Breakers - MCBs dimensions or variations

Range

Square D

Poles Description

1P

[In] Rated Current

10 A

Series Name

Qovs

Tripping Characteristics

Type AC

Product Description

US $ 962.09

Quantity:

EA

This item is sold by

Shop by Specification Table

You can find items with similar specifications from the table below.

Miniature Circuit Breakers - MCBs

miniature-circuit-breakers-mcbs-img

Square D, Resi 9, Easy 9, TeSys, Acti 9

Poles Description

2P, 3P, 1P, 3P+N, 1P+N

[In] Rated Current

3.5 A, 3.2 kA, 5 A, 2 A, 50 A

Breaking Capacity

20 kA, 15 kA, 25 kA, 30 kA, 10 kA, 15 kA

EN 60947-2 EN 60898-1 IEC 60947-2 IEC 60898-1, EN 60947-2 IEC 60947-2 IEC 60898-1 EN 60898-1, EN 60947-2 IEC 60898-1 EN 60898-1 IEC 60947-2, EN 60947-2 EN 60898-1 IEC 60898-1 IEC 60947-2, IEC 60947-2 EN 60898-1 EN 60947-2 IEC 60898-1

Magnetic Tripping Limit

4 x In +/- 20 %, 3...5 x In, 5...10 x In, 10...14 x In, 12 x In +/- 20 %

Connection - Terminals

Tunnel type terminals (downstream) 0.5…35 mm² rigid, Single terminal (top or bottom) 1…35 mm² rigid Single terminal (top or bottom) 1…25 mm² flexible, Tunnel type terminal (top or bottom) 1…35 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible, Tunnel type terminals (downstream) 0.5…35 mm² rigid Tunnel type terminals (upstream) 0.5…35 mm² rigid Tunnel type terminals (downstream) 0.5…25 mm² flexible Tunnel type terminals (upstream) 0.5…25 mm² flexible, Tunnel type terminals1…50 mm² rigid Tunnel type terminals1.5…35 mm² flexible
