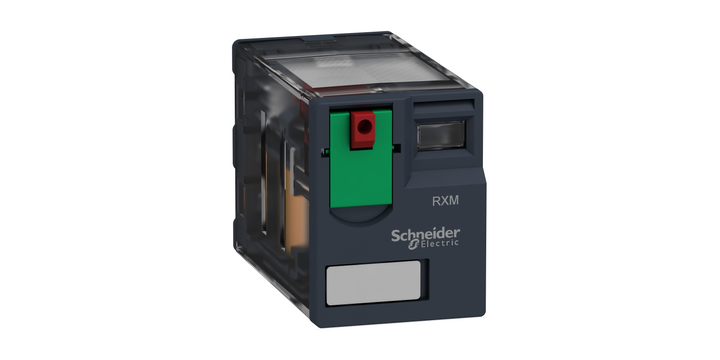

Schneider Electric Miniature Plug-in Relay - Zelio Rxm 4 C/O 230 V Ac 6 a RXM4AB1P7

Spefisikasi :

Shape of pin : Flat
[Ui] rated insulation voltage : 250 V, conforming to IEC 300 V, conforming to CSA 300 V conforming to UL
[Uimp] rated impulse withstand voltage : 2.5 kV during 1.2/50 µs
Contacts material : AgNi
[Ie] rated operational current : 3 A at 28 V (DC), NC conforming to IEC 3 A at 250 V (AC), NC conforming to IEC 6 A at 28 V (DC), NO conforming to IEC 6 A at 250 V (AC), NO conforming to IEC 6 A at 277 V (AC), conforming to UL 8 A at 30 V (DC), conforming to UL
Continuous output current : 5 A
Maximum switching voltage : 250 V conforming to IEC
Resistive rated load : 6 A at 250 V AC, 6 A at 28 V DC
Maximum switching capacity : 1500 VA/168 W
Minimum switching capacity : 170 mW at 10 mA, 17 V
Operating rate : <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
Mechanical durability : 10000000 cycles
Electrical durability : 100000 cycles for resistive load
Average coil consumption in VA : 1.2 at 60 Hz
Average consumption : 1.2 VA at 60 Hz
Drop-out voltage threshold : >= 0.15 Uc
Operate time : 20 ms
Release time : 20 ms
Average coil resistance : 15000 Ohm at 20 °C +/- 15 %
Rated operational voltage limits : 184...253 V AC
Protection category : RT I
Test levels : Level A group mounting
Operating position : Any position
CAD overall height : 79 mm
CAD overall depth : 78.45 mm
