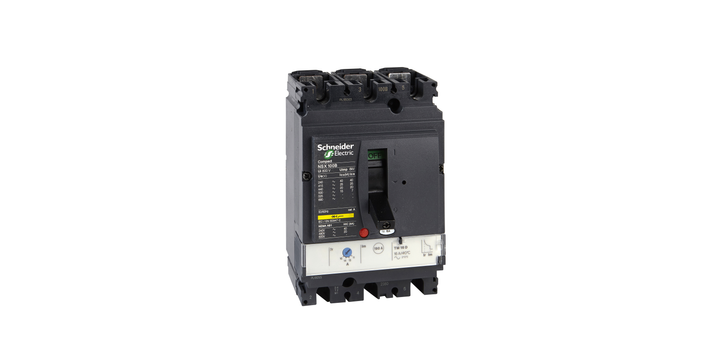

SCHNEIDER ELECTRIC Circuit Breaker Compact NSX100H - Tmd - 80 a - 3 Poles 3d LV429671

MAIN SPECIFICATIONS

• Breaking Capacity 10 kA at 600 V AC 50/60 Hz conforming to UL 508
• 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
• 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
• 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
• 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
• 65 kA at 480 V AC 50/60 Hz conforming to UL 508
• 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
• 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
• 85 kA at 240 V AC 50/60 Hz conforming to UL 508
• Breaking Capacity Code H 70 kA 415 V AC
• Contacts Type And Composition 80 A at 40 °C
• Control Type toggle
• Product Or Component Type circuit breaker
• Range Of Product ComPact NSX100...250
• Trip Unit Name TM-D
• [Ie] Rated Operational Current toggle
• [Ue] Rated Operational Voltage 690 V AC 50/60 Hz
• Device Short Name NSX100H
• EAN13 3606480009020
• Mounting Support backplate
• Network Type AC
• Protected Poles Description 3t
• Range ComPact
• Range Name ComPact NSX
• Suitability For Isolation yes conforming to EN/IEC 60947-2
• Trip Unit Protection Functions LI
• Trip Unit Technology thermal-magnetic
• Utilisation Category category A

COMPLEMENTARY

• Communication Network Type 690 V AC 50/60 Hz
• Current Transformer Type H 70 kA 415 V AC
• Interlocked Device 10 kA at 600 V AC 50/60 Hz conforming to UL 508
• 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
• 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
• 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
• 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
• 65 kA at 480 V AC 50/60 Hz conforming to UL 508
• 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
• 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
• 85 kA at 240 V AC 50/60 Hz conforming to UL 508
• Product Name ComPact NSX
• [Ics] Rated Service Breaking Capacity 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
• 100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
• 35 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
• 50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
• 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
• 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
• [In] Rated Current 80 A at 40 °C
• Compatibility Code NSX100
• Connection Pitch 35 mm
• Depth 86 mm
• Device Application distribution
• Downside Connection front
• Earth-leakage Protection without
• Electrical Durability 10000 cycles at 690 V In
• 20000 cycles at 690 V In/2
• 30000 cycles at 440 V In
• 50000 cycles at 440 V In/2
• Height 161 mm
• Long Time Delay Adjustment Type fixed
• Long Time Pick-up Adjustment Range 0.7...1 x In
• Long Time Pick-up Adjustment Type Ir adjustable
• Mechanical Durability 50000 cycles
• Mounting Mode fixed
• Net Weight 2.05 kg
• Network Frequency 50/60 Hz
• Number Of Slots 5 slot(s)
• Protection Type I : for short-circuit protection (magnetic)
• L : for overload protection (thermal)
• Short-time Delay Adjustment Type fixed
• Short-time Pick-up Adjustment Type Isd fixed
• Trip Unit Rating 80-80 A at 40 °C
• Upside Connection front
• Width 105 mm
• [Isd] Short-time Pick-up Adjustment Range 640 A
• [tr] Long-time Delay Adjustment Range 120-400 s at 1.5 x In
• 15-15 s at 6 x Ir
• [Uimp] Rated Impulse Withstand Voltage 8 kV
• [Ui] Rated Insulation Voltage 800 V AC 50/60 Hz

ENVIRONMENT

• Ambient Air Temperature For Operation -25-70 °C
• Ambient Air Temperature For Storage -50-85 °C
• Electrical Shock Protection Class class II
• IK Degree Of Protection IK07 conforming to IEC 62262
• IP Degree Of Protection IP40 conforming to IEC 60529
• Operating Altitude 0...2000 m without derating
• 2000 m...5000 m with derating
• Overvoltage Category class II
• Pollution Degree 3 conforming to IEC 60664-1
• Product Certifications CCC
• EAC
• Marine
• Relative Humidity 0-95 %
• Standards EN/IEC 60947

OTHER

• Earth Leakage Current TM-D
• Poles Description 3P
• [Us] Rated Supply Voltage ComPact NSX100...250
