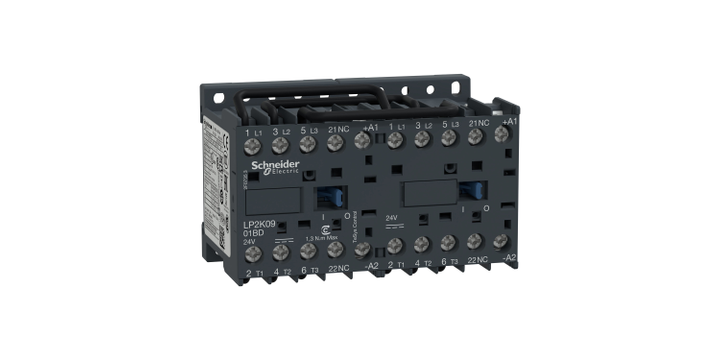

Schneider Electric LP2K0901BD Reversing Contactor, Tesys K, 3P, AC-3/AC-3e,440V 9A, 1NC, 24V Dc Coil, Screw Clamp Terminals

View Brand

Schneider Electric LP2K0901BD Reversing Contactor, Tesys K, 3P, AC-3/AC-3e,440V 9A, 1NC, 24V Dc Coil, Screw Clamp Terminals

Brand:	SCHNEIDER ELECTRIC
Model:	LP2K0901BD

Technical Data Sheets

Product Datasheet

Instruction sheet

Catalogue

Environmental disclosure

Specifications

View other Contactors dimensions or variations

Device Short Name

LP2K

Depth

57 mm

Poles Description

Contactor Application

Motor control Resistive load

Product Name

TeSys K

Standards

EN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1

[Ui] Rated Insulation Voltage

Power circuit: 600 V conforming to UL 508 Power circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-5-1 Signalling circuit: 600 V conforming to UL 508 Power circuit: 600 V conforming to CSA C22.2 No 14 Signalling circuit: 600 V conforming to CSA C22.2 No 14

[Uimp] Rated Impulse Withstand Voltage

8 kV

Mounting Support

Plate Rail

Connections - Terminals

Screw clamp terminals 1 cable(s) 1.5…4 mm²solid Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 1.5…4 mm²solid Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end

Height

58 mm

Ip Degree Of Protection

IP20 conforming to VDE 0106

Ambient Air Temperature For Operation

-25…50 °C

Mechanical Durability

5 Mcycles

Ambient Air Temperature For Storage

-50…80 °C

Electrical Durability

1.3 Mcycles 9 A AC-3 at Ue <= 440 V 1.3 Mcycles 9 A AC-3e at Ue <= 440 V 0.16 Mcycles 20 A AC-1 at Ue <= 690 V 0.02 Mcycles 54 A AC-4 at Ue <= 440 V

Operating Altitude

2000 m without derating

Tightening Torque

0.8…1.3 N.m - on screw clamp terminals Philips No 2 0.8…1.3 N.m - on screw clamp terminals flat Ø 6 mm 0.8…1.3 N.m - on screw clamp terminals pozidriv No 2

[Ue] Rated Operational Voltage

Power circuit: 690 V AC 50/60 Hz Signalling circuit: <= 690 V AC 50/60 Hz

[Ie] Rated Operational Current

9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit

[Uc] Control Circuit Voltage

24 V DC

Heat dissipation

3 W

Range

TeSys

Utilisation Category

AC-3 AC-3e AC-4 AC-1

Motor Power Kw

2.2 kW at 220...230 V AC 50/60 Hz 4 kW at 380...415 V AC 50/60 Hz 4 kW at 440/690 V AC 50/60 Hz

[Ith] Conventional Free Air Thermal Current

20 A (at 60 °C) for power circuit 10 A (at 50 °C) for signalling circuit

Irms Rated Making Capacity

110 A AC for power circuit conforming to IEC 60947 110 A AC for signalling circuit conforming to IEC 60947

Rated Breaking Capacity

110 A at 220...230 V conforming to IEC 60947 110 A at 380...400 V conforming to IEC 60947 110 A at 415 V conforming to IEC 60947 110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 70 A at 660...690 V conforming to IEC 60947

[Icw] Rated Short-Time Withstand Current

90 A 50 °C - 1 s for power circuit 85 A 50 °C - 5 s for power circuit 80 A 50 °C - 10 s for power circuit 60 A 50 °C - 30 s for power circuit 45 A 50 °C - 1 min for power circuit 40 A 50 °C - 3 min for power circuit 20 A 50 °C - >= 15 min for power circuit 80 A - 1 s for signalling circuit 90 A - 500 ms for signalling circuit 110 A - 100 ms for signalling circuit

Associated Fuse Rating

25 A gG at <= 440 V for power circuit 25 A aM for power circuit 10 A gG for signalling circuit conforming to IEC 60947 10 A gG for signalling circuit conforming to VDE 0660

Average Impedance

3 mOhm - Ith 20 A 50 Hz for power circuit

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Control Circuit Type

DC standard

Control Circuit Voltage Limits

Operational: 0.8...1.15 Uc (at <50 °C) Drop-out: 0.1...0.75 Uc (at <50 °C)

Operating Time

30...40 ms coil energisation and NO closing 10 ms coil de-energisation and NO opening

Auxiliary Contact Composition

3600 cyc/h

Maximum Operating Rate

1 NC

Auxiliary Contacts Type

type instantaneous 1 NC

Minimum Switching Voltage

17 V for signalling circuit

Minimum Switching Current

5 mA for signalling circuit

Insulation Resistance

> 10 MOhm for signalling circuit

Protective Treatment

TC conforming to IEC 60068 TC conforming to DIN 50016

Flame Retardance

V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102

Mechanical Robustness

Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Shocks contactor opened, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on X axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27

Inrush Power In W

3 W (at 20 °C)

Hold-In Power Consumption In W

3 W at 20 °C

Power Pole Contact Composition

3 NO

Non Overlap Distance

0.5 mm

Interlocking Type

Mechanical

Product Description

US $ 132.58
