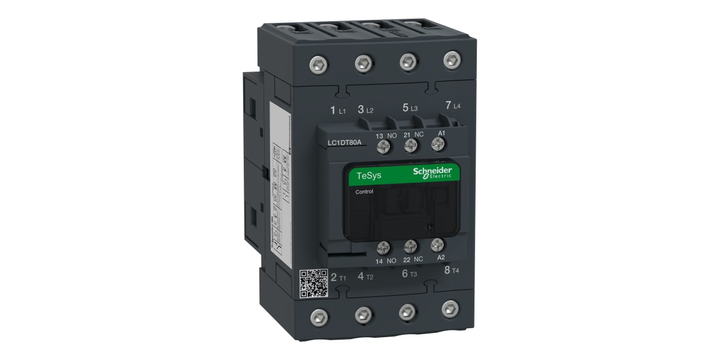

Schneider Electric LC1DT80AB7 LC1D Series Contactor, 24 V Ac Coil, 4-Pole, 80 A, 4NO, 690 V Ac
Schneider Electric LC1DT80AB7 LC1D Series Contactor, 24 V Ac Coil, 4-Pole, 80 A, 4NO, 690 V Ac
Brand: | SCHNEIDER ELECTRIC |
Model: | LC1DT80AB7 |
Specifications
Please select at least one specification below.
Device Short Name
LC1D
Range Of Product
TeSys D
Depth
120 mm
Pole Contact Composition
4 NO
Poles Description
4P
Contactor Coil Voltage
24 V ac
Minimum Operating Temperature
-5°C
Maximum Operating Temperature
+60°C
Terminal Type
Screw
Contact Current Rating
80 A
Contact Voltage Rating
690 V ac
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Number Of Auxiliary Contacts
2
This spec is not available in the specification table.
Product Description
US $ 628.74
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 628.74 |
