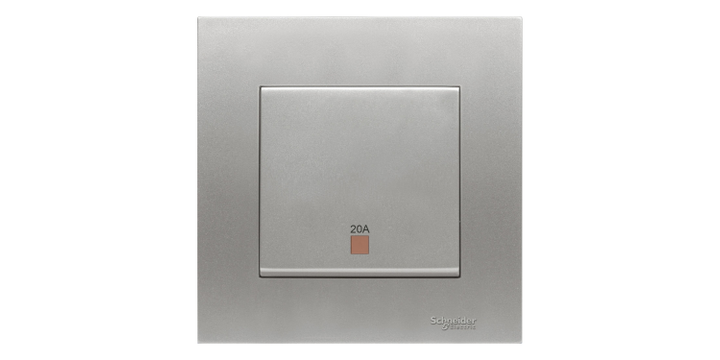

Schneider Electric KB31D20NE_AS_G2 Vivace 20A 250V 1Gang Dp Switch With Neon & Earth Aluminium Silver
Schneider Electric KB31D20NE_AS_G2 Vivace 20A 250V 1Gang Dp Switch With Neon & Earth Aluminium Silver
Brand: | SCHNEIDER ELECTRIC |
Model: | KB31D20NE_AS_G2 |
Specifications
Please select at least one specification below.
Width
86 mm
Material
Polycarbonate: grid plate
Polycarbonate: surround
Nylon: base
Device application
Control
Standards
SS 227
IEC 60669-1
MS IEC 60669-1
Connections -Terminals
Pillar terminals
Height
86 mm
Relative humidity
0…95 %
Number of gangs
1 gang
Colour tint
Aluminium silver
Device mounting
Flush
Switch function
Double 1-way with earth
Rated Current
20 A at 250 V AC, inductive
20 A at 250 V AC, resistive
Clamping connection capacity
<= 2.5 mm²
Environmental characteristic
Indoor use
Device short name
KB31
This spec is not available in the specification table.
Product or component type
Switch
This spec is not available in the specification table.
Range
Vivace
This spec is not available in the specification table.
Network frequency
50 Hz
This spec is not available in the specification table.
Mounting Support
Wall mounted
This spec is not available in the specification table.
Ambient air temperature for operation
-5…40 °C
This spec is not available in the specification table.
Tightening torque
0.4 N.m
This spec is not available in the specification table.
Actuator
Rocker
This spec is not available in the specification table.
[Ue] rated operational voltage
250 V AC
This spec is not available in the specification table.
Projecting depth
8 mm
This spec is not available in the specification table.
Fixing mode
By screw M3.5
This spec is not available in the specification table.
Fixing center
60.3 mm
This spec is not available in the specification table.
Embedding depth
35 mm
This spec is not available in the specification table.
Contacts material
Brass and phosphor bronze
This spec is not available in the specification table.
Terminal identifier
L2
N2
L1
N1
This spec is not available in the specification table.
Pilot light
Neon indicator lamp
This spec is not available in the specification table.
Product Description
US $ 27.51
Quantity:
EA
This item is sold by0
Schneider Electric
