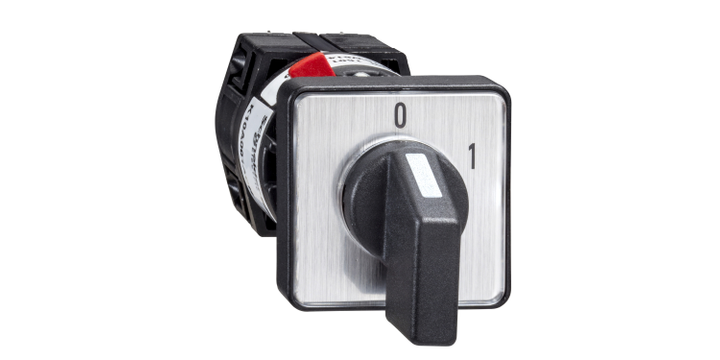

Schneider Electric K10B002ACH Complete Cam Switch, Harmony K1, K2, Cam Switch, Harmony K, 16mm or 22mm, Plastic, 2 Poles, 60degrees, 10A, 30x30mm, Marked 0 1

This Harmony K10 cam switch/selector switch has 2 poles (2P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "0 - 1" marking to indicate the position of the switch. This metal head cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.

Specifications:

• Product or Component Type: Complete cam switch
• Component Name: K10
• Conventional Free Air Thermal Current (Ith): 10 A
• Product Mounting: Front mounting
• Fixing Mode: Ø 16 or 22 mm hole
• Cam Switch Head Type: With front plate 30 x 30 mm
• Type of Operator: Black handle
• Rotary Handle Padlocking: Without
• Presentation of Legend: With metallic legend, 0 - 1 black marking
• Cam Switch Function: Switch
• Return: Without
• Off Position: With Off position
• Poles Description: 2P
• Switching Positions: Right: 0° - 60°
• IP Degree of Protection:
• Contact block: IP20
• Operating head: IP65 conforming to IEC 60529
• Complementary:
• Switching Angle: 60 °
• Rated Insulation Voltage (Ui): 440 V (pollution degree 3) conforming to IEC 60947-1
• Rated Operational Power:
• 370 W AC-23A, 110/120 V 1 phase
• 750 W AC-23A, 220/240 V 1 phase
• Rated Power in hp:
• 0.33 hp at 110/120 V AC, 1 phase
• 0.75 hp at 220/240 V AC, 1 phase
• Rated Operational Current AC:
• 10 A at 400 V AC-1
• 10 A at 400 V AC-21A
• 3 A at 240 V AC-15
• 6 A at 120 V AC-15
• Rated Operational Current DC:
• 10 A at 24 V resistive load
• 0.3 A at 220 V resistive load
• 0.7 A at 110 V resistive load
• Electrical Durability: 100,000,000 cycles
• Short-Circuit Protection: 10 A cartridge fuse, type gG
• Rated Impulse Withstand Voltage (Uimp): 4 kV conforming to IEC 60947-1
• Contact Operation: Slow-break
• Electrical Connection: Captive screw clamp terminals, clamping capacity: 2 x 1.5 mm²
• Mechanical Durability: 1,000,000 cycles
• CAD Overall Dimensions:
• Width: 30 mm
• Height: 30 mm
• Depth: 76 mm
• Net Weight: 0.035 kg
• Environment:
• Standards: CENELEC EN 50013, IEC 60947-3, IEC 60947-5-1
• Product Certifications: CULus
• Protective Treatment: TC
• Ambient Air Temperature:
• Operation: -20…55 °C
• Storage: -40…70 °C
• Electrical Shock Protection Class: Class II conforming to IEC 60536
