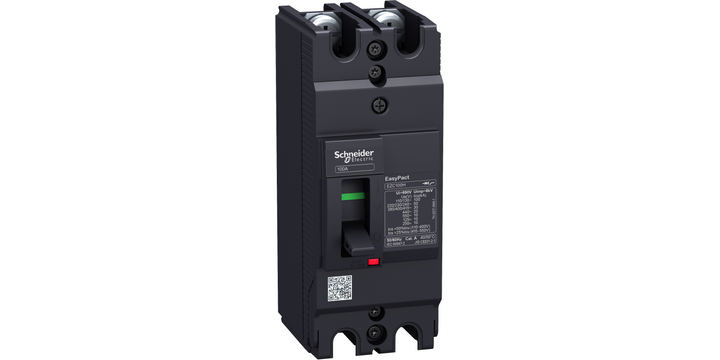

Schneider Electric EZC100H2075 Circuit Breaker,easypact EZC100H ,tmd, 75A ,2 Poles 2d
Schneider Electric EZC100H2075 Circuit Breaker,easypact EZC100H ,tmd, 75A ,2 Poles 2d
Brand: | SCHNEIDER ELECTRIC |
Model: | EZC100H2075 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Standards and Certifications
IEC 60947, UL 508
This spec is not available in the specification table.
Rated Current
75A
This spec is not available in the specification table.
Poles
2
This spec is not available in the specification table.
Mounting Type
Fixed
This spec is not available in the specification table.
Rated Voltage
550VAC 50/60Hz or 250VDC
This spec is not available in the specification table.
Breaking Capacity
30kA rms at 240VAC 50/60Hz
This spec is not available in the specification table.
Product Description
SCHNEIDER ELECTRIC Circuit Breaker,easypact EZC100H ,tmd, 75A ,2 Poles 2d EZC100H2075
EasyPact EZC100H is a 2 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 30kA rms at 240VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 75A. The trip unit provides fixed overload and instantaneous protections. The rating of the thermal-magnetic trip unit is 75A. Easypact EZC100H is compliant with international standards (IEC 60947, UL 508) and marine certifications.
US $ 100.89
Lead time of 60 working days required.
Item will be ready to dispatch within the lead time specified.
