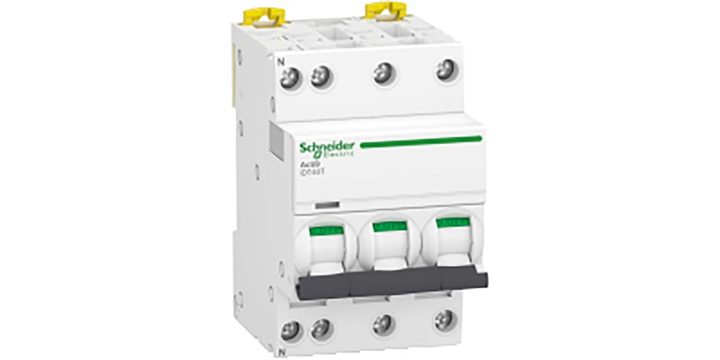

Schneider Electric A9P22716 Acti 9 Acti9 iDT40T Mcb, 3P, 16A Curve C, 400V Ac, 6 Ka Breaking Capacity
Schneider Electric A9P22716 Acti 9 Acti9 iDT40T Mcb, 3P, 16A Curve C, 400V Ac, 6 Ka Breaking Capacity
Specifications
infotip-icon
View other Miniature Circuit Breakers - MCBs dimensions or variations
Please select at least one specification below.
Range
Acti 9
Poles Description
3P
[In] Rated Current
16 A
Breaking Capacity
6 kA
Width
74 mm
This spec is not available in the specification table.
Depth
85 mm
This spec is not available in the specification table.
Mounting Support
DIN Rail Mount
This spec is not available in the specification table.
Series Name
Acti 9 iDT40T
This spec is not available in the specification table.
Length
54 mm
This spec is not available in the specification table.
Tripping Characteristics
Type C
This spec is not available in the specification table.
Circuit Breaker Type
MCB
This spec is not available in the specification table.
Terminal Contact Type
Screw
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Tripping Mechanism
Thermal-Magnetic
This spec is not available in the specification table.
Reset Actuator Type
Toggle Switch
This spec is not available in the specification table.
Rated AC Voltage
400 V
This spec is not available in the specification table.
Product Description
US $ 172.48
Quantity:
EA
This item is sold by
SG-4570630354
Shop by Specification Table
You can find items with similar specifications from the table below.
Miniature Circuit Breakers - MCBs
714 Items
miniature-circuit-breakers-mcbs-img
Range
Multi 9, Square D, TeSys, Resi 9, Acti 9
Poles Description
3P, 1P, 3P+N, 1P+N, 2P
[In] Rated Current
3.5 A, 3.2 kA, 500 mA, 24 A, 6 A
Breaking Capacity
25 kA, 20 kA, 30 kA, 10 kA, 20 kA, 15 kA, 30 kA
Standards
EN 60947-2 IEC 60947-2 IEC 60898-1 EN 60898-1, EN/IEC 60898-1, EN/IEC 60898-1 EN/IEC 60947-2, EN 60947-2 IEC 60898-1 EN 60898-1 IEC 60947-2, EN/IEC 60947-2 EN/IEC 60898-1
Magnetic Tripping Limit
12 x In +/- 20 %, 8 x In +/- 20 %, 4 x In +/- 20 %, 10...14 x In, 5...10 x In
Connection - Terminals
Single terminal (top or bottom) 1…35 mm² rigid Single terminal (top or bottom) 1…25 mm² flexible, Tunnel type terminals (downstream) 0.5…25 mm² rigid Tunnel type terminals (upstream) 0.5…25 mm² rigid Tunnel type terminals (downstream) 0.5…16 mm² flexible Tunnel type terminals (upstream) 0.5…16 mm² flexible Tunnel type terminals (downstream) 0.5…16 mm² flexible with ferrule Tunnel type terminals (upstream) 0.5…16 mm² flexible with ferrule, Tunnel type terminals (downstream) 0.5…35 mm² rigid, Tunnel type terminal (top or bottom) 1…35 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible, Tunnel type terminals (downstream) 0.5…35 mm² rigid Tunnel type terminals (upstream) 0.5…35 mm² rigid Tunnel type terminals (downstream) 0.5…25 mm² flexible Tunnel type terminals (upstream) 0.5…25 mm² flexible Tunnel type terminals (downstream) 0.5…25 mm² flexible with ferrule Tunnel type terminals (upstream) 0.5…25 mm² flexible with ferrule
