Schneider Electric A9N26927 Auxiliary Contact Alarm Sd Ac Dc - Acti9

Schneider Electric A9N26927 Auxiliary Contact Alarm Sd Ac Dc - Acti9

Brand:	SCHNEIDER ELECTRIC
Model:	A9N26927

Technical Data Sheets

Product Description

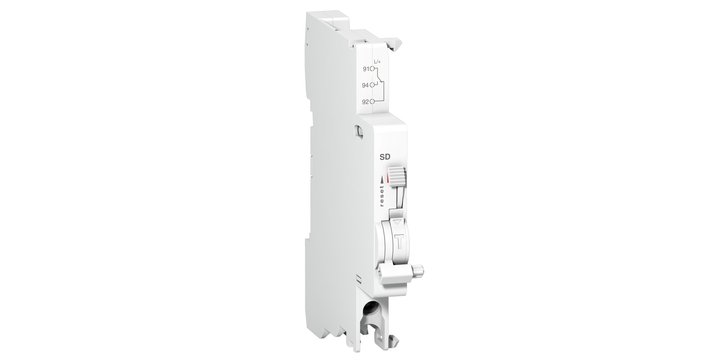

SCHNEIDER ELECTRIC Acti 9 - Auxiliary Contact Alarm Sd Ac Dc A9N26927

This Acti9 SD electric auxiliary is a remote fault indicator contact. It is compatible with Acti9 ranges such as C120, C60H-DC, DPN N Vigi, and xC60. It comes with 1 changeover contact indicating the position of the associated device. It indicates the position of the associated device in the event of electrical fault or action on the tripping auxiliary. The width in 9mm pitches is 1. It indicates the position of the associated device in the event of electrical fault or action on the tripping auxiliary. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. There is a mechanical state indicator and a test function button on the front face. Be careful, this device is not compatible with an ID residual current circuit breaker. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standard and EN 62019-2 standard only for C120.

US $ 465.27

Lead time of 60 working days required.

Item will be ready to dispatch within the lead time specified.

Quantity:

EA

MOQ of 12 EA

Bundle of 12 EA

This item is sold by

Free delivery above SGD 150 spent in this shop

Shop by Specification Table

You can find items with similar specifications from the table below.

Auxiliary Contact

auxiliary-contact-img

6 A at 120 V AC-15 3 A at 240 V AC-15 1.8 A at 400 V AC-15 1.5 A at 480 V AC-15 2.8 A at 24 V DC-13 1.4 A at 48 V DC-13 0.55 A at 125 V DC-13 0.27 A at 250 V DC-13 0.15 A at 400 V DC-13, AC-12 6 A at 240 V, AC 50/60 Hz AC-12 3 A at 415 V, AC 50/60 Hz DC-12 2 A at 48 V, DC DC-12 1.5 A at 60 V, DC DC-12 1 A at 130 V, DC DC-12 6 A at 24 V, DC, DC-12 1 A at 130 V, DC DC-12 2 A at 48 V, DC DC-12 6 A at 24 V, DC AC-12 3 A at 415 V, AC 50/60 Hz AC-12 6 A at 240 V, AC 50/60 Hz, DC-12 1 A at 130 V, DC DC-12 1.5 A at 60 V, DC DC-12 2 A at 48 V, DC DC-12 6 A at 24 V, DC AC-12 3 A at 415 V, AC 50/60 Hz AC-12 6 A at 240 V, AC 50/60 Hz, AC-12 3 A at 380...415 V, AC 50/60 Hz AC-12 6 A at 220...240 V, AC 50/60 Hz DC-12 1 A at 130 V, DC DC-12 1.5 A at 60 V, DC DC-12 2 A at 48 V, DC DC-12 6 A at 24 V, DC

TeSys D, TransferPacT, C6-, Tesys, Multi 9

IEC 60947-3, IEC 60947-5, EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 JIS C8201-5-1, UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 EN/IEC 60947-5-1, EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage

690 V conforming to IEC 60947-1, 300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14 250 V conforming to IEC 60947-1, 600 V conforming to UL 508 690 V conforming to IEC 60947-1 600 V conforming to CSA C22.2 No 14, 500 V, 400 V

IP Degree of Protection

IP2X conforming to IEC 60529, IP20 conforming to IEC 60529, IP2X, IP20 conforming to EN/IEC 60947-5-1, IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529

Ambient Air Temperature for Operation

-5…60 °C, -20…50 °C, -35…70 °C, -25…50 °C, -25…60 °C

Ambient Air Temperature for Storage

-60…80 °C, -50…70 °C, -40…70 °C, -40…85 °C, -50…80 °C
