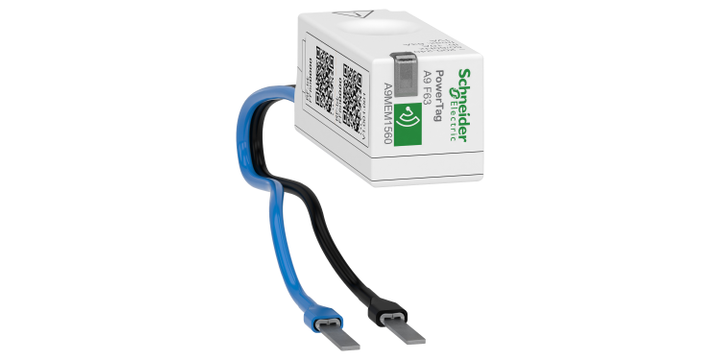

Schneider Electric A9MEM1560 Energy Sensor, Powertag Flex 230V 63A 1P+N Top and Bottom Position

This PowerTag Energy F63 1P+N is a wireless communication energy sensor. With its Flex design, it is dedicated to 1P+N devices, rating less than or equal 63A. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active energy, active power, current, voltage and power factor. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized. PowerTag Energy 63A complies with IEC 61557-12 standard. It is a PMD-I/DD/K55/1. The Performance category is Class 1. The Imax Maximum current is 63A. The Ib Base current is 10A. The Saturation current is 130A. The Ist Starting current is 40mA. The Un rated voltage is Phase-to-neutral 200VAC to 240VAC +/- 20%. The maximum consumption is below or equal to 1VA. It can be either mounted on the top or the bottom of the protective device. The product color is white (RAL9003). The weight is 16g. The degree of protection is IP20 and IK05 The operating temperature is between -25°C to +60°C. The Storage temperature is between -40°C to +85°C.

• Range of Product: PowerLogic
• Product Name: PowerTag A9 F63
• Product or Component Type: Energy sensor
• Poles: 1P + N
• Maximum Current [Imax]: 63 A
• Basic Current [Ib]: 10 A
• Starting Current: 40 mA
• Saturation Current: 130 A
• Product Specific Application:
• Cost allocation
• Load monitoring
• Circuit monitoring
• Overload alarm
• Energy management
• Concentrator Compatibility:
• Acti9 Smartlink SI B
• Acti9 Smartlink SI D
• Acti9 PowerTag Link C
• Acti9 PowerTag Link
• Acti9 PowerTag Link HD
• Harmony Hub
• Wiser IP module
• EcoStruxure Panel Server Universal
• EcoStruxure Panel Server Advanced
• PrismaSet Active
• Range Compatibility:
• Acti 9 Acti9 iCV40
• Acti 9 Vigi iC40
• Acti 9 Vigi iC60
• Acti 9 Acti9 iDD40 XA
• Acti 9 Acti9 iCV40 XA
• Acti 9 Vigi iDT40
• Type of Measurement:
• Active energy
• Current
• Voltage
• Power factor
• Active power
• Accuracy Class:
• Class 1 current conforming to IEC 61557-12
• Class 0.5 voltage conforming to IEC 61557-12
• Class 1 active power conforming to IEC 61557-12
• Class 1 active energy conforming to IEC 61557-12
• Class 1 power factor conforming to IEC 61557-12
• Mounting Location: Top or bottom
• Mounting Support: On circuit breaker
• Product Destination: Switchboard
• Event Management: Voltage loss with measured current at voltage loss
• Transmission Support Medium: Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4
• Emission Power: 10 mW
• Mounting Mode: By screws (terminals)
• Electrical Connection (Voltage Sensing & Power Supply): Wires with cable end
• Cable Cross Section:
• 1 rigid cable: 1.5…16 mm²
• 2 stranded cable: 1.5…2.5 mm²
• 2 rigid cable: 1.5…2.5 mm²
• 1 stranded cable: 1.5…16 mm²
• Cable Length: 0.25 m
• Supply Voltage: 200...240 V AC, +/- 20 %
• Network Frequency: 50 Hz, 60 Hz
• Maximum Power Consumption: 1 VA
• Standards:
• IEC 61557-12
• IEC 61010-1
• IEC 61010-2-030
• IEC 61326-1
• ETSI EN 300 328
• ETSI EN 301 487-1
• Height (Sensor Element): 20 mm
• Width (Sensor Element): 18 mm
• Depth (Sensor Element): 44.5 mm
• Net Weight: 16 g
• Colour: White (RAL 9003)
• Quality Labels: CE
• Directives: 2014/53/EU - Radio Equipment Directive
• Operating Altitude: 0...2000 m
• Ambient Air Temperature for Operation: -25…60 °C
• Ambient Air Temperature for Storage: -40…85 °C
• Overvoltage Category: III conforming to IEC 61010-1
• Measurement Category: Category III conforming to IEC 61010-2-030
• IP Degree of Protection: IP20 conforming to IEC 60529
• IK Degree of Protection: IK05
• Pollution Degree: 3
• Relative Humidity: 0…95 % at 45 °C conforming to IEC 60721-3-3
• Vibration Resistance: 3M4 conforming to IEC 60721-3-3
• Electromagnetic Compatibility:
• Industrial electromagnetic environment conforming to IEC 61326-1
• Radiated EMC conforming to ETSI EN 301 489-17
• Electromagnetic emission conforming to IEC 62311
• Environmental Characteristics:

Dustproof class 3S3 conforming to IEC 60721-3-3

Salt mist class 3C2 conforming to IEC 60721-3-3

Indoor use
