Schneider Electric A9F55220 Acti 9 iC60H Mcb, 2P, 20A Curve D, 440V Ac, 100 → 133V Dc, 10 Ka Breaking Capacity

View Brand

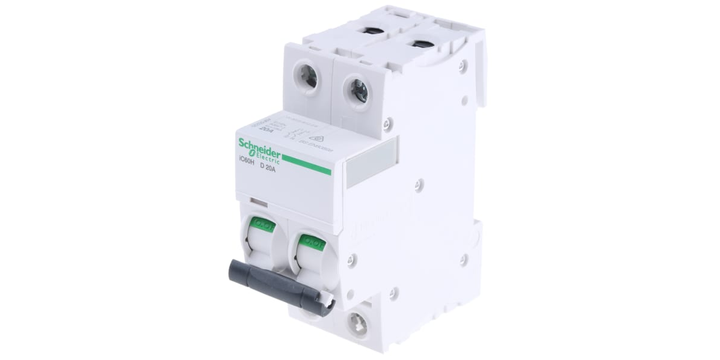

Schneider Electric A9F55220 Acti 9 iC60H Mcb, 2P, 20A Curve D, 440V Ac, 100 → 133V Dc, 10 Ka Breaking Capacity

Brand:	SCHNEIDER ELECTRIC
Model:	A9F55220

Specifications

View other Miniature Circuit Breakers - MCBs dimensions or variations

Range

Acti 9

Poles Description

[In] Rated Current

20 A

Breaking Capacity

10 kA

Width

36 mm

Depth

78.5 mm

Mounting Support

DIN Rail Mount

Series Name

iC60H

Length

85 mm

Tripping Characteristics

Type D

Circuit Breaker Type

MCB

Terminal Contact Type

Screw

Better World Product

Yes

Better World Verification

Green Premium

Tripping Mechanism

Thermal-Magnetic

Reset Actuator Type

Rocker Switch

Rated AC Voltage

440 V, 12 → 133 V, 220 → 240 V, 380 → 415 V

Rated DC Voltage

100 → 133 V

Product Description

US $ 137.97

Quantity:
