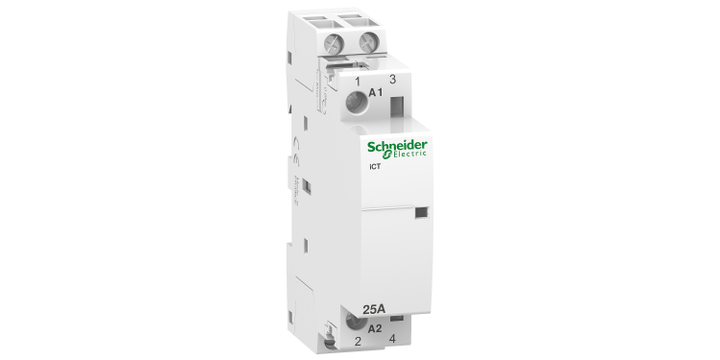

Schneider Electric A9C20632 Ict 25A 2NO 220...240V 60Hz Contactor
Schneider Electric A9C20632 Ict 25A 2NO 220...240V 60Hz Contactor
Specifications
infotip-icon
View other Contactors dimensions or variations
Please select at least one specification below.
Device Short Name
iCT
Range Of Product
Acti9
Depth
68.5 mm
Pole Contact Composition
2 NO
Colour
White
This spec is not available in the specification table.
Control Type
Remote control
This spec is not available in the specification table.
Product Name
Acti9 iCT
This spec is not available in the specification table.
Compatibility Code
ICT
This spec is not available in the specification table.
Mounting Mode
Clip-on
This spec is not available in the specification table.
Standards
IEC/EN 61095
This spec is not available in the specification table.
[Ui] Rated Insulation Voltage
500 V AC 50/60 Hz
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
4 kV
This spec is not available in the specification table.
Mounting Support
35 mm symmetrical DIN rail
This spec is not available in the specification table.
Connections - Terminals
Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid Power circuit: tunnel type terminals1 cable(s) 1…4 mm² flexible Power circuit: tunnel type terminals1 cable(s) 1.5…6 mm² rigid Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible
This spec is not available in the specification table.
Height
81 mm
This spec is not available in the specification table.
Ip Degree Of Protection
IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
This spec is not available in the specification table.
Pollution Degree
2
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-5…60 °C
This spec is not available in the specification table.
Mechanical Durability
1000000 cycles
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Electrical Durability
100000 cycles IEC/EN 61095 25 A 60 Hz AC-7A 30000 cycles IEC/EN 61095 8.5 A 60 Hz AC-7B 30000 cycles IEC/EN 61095 60 Hz AC-7C 100000 cycles EN/IEC 60947-4-1 60 Hz AC-1 30000 cycles EN/IEC 60947-4-1 60 Hz AC-3 30000 cycles EN/IEC 60947-4-1 60 Hz AC-5a 30000 cycles EN/IEC 60947-4-1 60 Hz AC-5b
This spec is not available in the specification table.
Operating Altitude
2000 m
This spec is not available in the specification table.
Tightening Torque
Control circuit: 0.8 N.m Power circuit: 0.8 N.m
This spec is not available in the specification table.
[Ue] Rated Operational Voltage
250 V AC 60 Hz
This spec is not available in the specification table.
[Ie] Rated Operational Current
25 A AC-7A 8.5 A AC-7B
This spec is not available in the specification table.
[Uc] Control Circuit Voltage
220...240 V AC 60 Hz
This spec is not available in the specification table.
Inrush power in VA
9.2 VA
This spec is not available in the specification table.
Hold-in power consumption in VA
2.7 VA
This spec is not available in the specification table.
Heat dissipation
0.9 W
This spec is not available in the specification table.
Poles
2P
This spec is not available in the specification table.
Width
18 mm
This spec is not available in the specification table.
Network Type
AC
This spec is not available in the specification table.
Network Frequency
60 Hz
This spec is not available in the specification table.
Local Signalling
2
This spec is not available in the specification table.
9 Mm Pitches
Action indicator
This spec is not available in the specification table.
Relative Humidity
95 % at 55 °C
This spec is not available in the specification table.
Tropicalisation
2 conforming to EN 60947-4-1 2 conforming to EN 61095 2 conforming to IEC 1095
This spec is not available in the specification table.
Product Compatibility
IACTp IATEt IACTc IACTs
This spec is not available in the specification table.
Market Segment
Small commercial Residential
This spec is not available in the specification table.
Control Signal Type
Maintained
This spec is not available in the specification table.
Switching Frequency
100 switching operations/day
This spec is not available in the specification table.
Noise Level
30 dB
This spec is not available in the specification table.
Maximum Power
0.9 W at 250 V AC
This spec is not available in the specification table.
