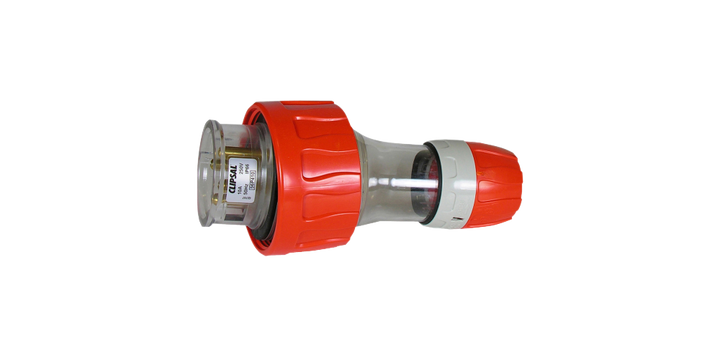

Schneider Electric 56 Series Plug - 4 Pin - 10A - 500V 56P410-EO
Schneider Electric 56 Series Plug - 4 Pin - 10A - 500V 56P410-EO
Brand: | SCHNEIDER ELECTRIC |
Model: | 56P410-EO |
Technical Data Sheets
Product Description
SCHNEIDER ELECTRIC 56 Series Plug - 4 Pin - 10A - 500V 56P410-EO
Specification :
[In] rated current : 10 A
Poles description : 3P + E
[Ue] rated operational voltage : 500 V AC 50 Hz conforming to EN 60309-2
Colour : Orange (RAL 2004)
Material : Plastic
Plug, socket category : Low voltage
Material : Polycarbonate: housing
Outlet standard : Industrial
Connections - terminals : Screw terminal 1…6 mm²
Wire stripping length : 45 Mm/12 mm
Contacts material : Pins: brass
Cable entry : Cable gland
Thread type : M25
Plug, socket, control station shape : Straight
Pin arrangement : K
Duration : 7 h
Net weight : 0.36 kg
Height : 78 mm
Width : 78 mm
Depth : 167 mm
Targeted country : Australia
US $ 1,038.10
Lead time of 19 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
EA
MOQ of 24 EA
Bundle of 24 EA
