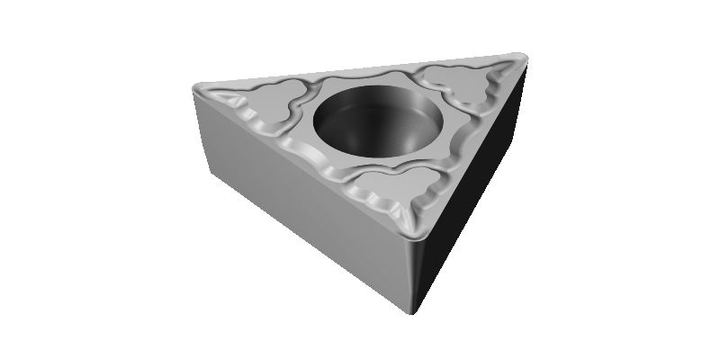

Sandvik Coromant Coroturnⓡ 107 Insert for Turning Tcmt 16 T3 04-km
Sandvik Coromant Coroturnⓡ 107 Insert for Turning Tcmt 16 T3 04-km
Brand: | Sandvik Coromant |
Model: | TCMT 16 T3 04-KM H13A |
Product Description
CoroturnⓇ 107 Insert for Turning
Insert size and shape (CUTINTSIZESHAPE)
TC16T3
Inscribed circle diameter (IC)
9.525 mm
Insert shape code (SC)
T
Cutting edge effective length (LE)
16.098 mm
Corner radius (RE)
0.397 mm
Wiper edge property (WEP)
false
Hand (HAND)
N
Grade (GRADE)
H13A
Substrate (SUBSTRATE)
HW
Insert thickness (S)
3.969 mm
Clearance angle major (AN)
7 deg
Weight of item (WT)
0.005 kg
Sensor embedded property (SEP)
0
Life cycle state (LCS)
Released
Release pack id (RELEASEPACK)
00.2
US $ 119.20
Quantity:
EA
MOQ of 10 EA
Bundle of 10 EA
