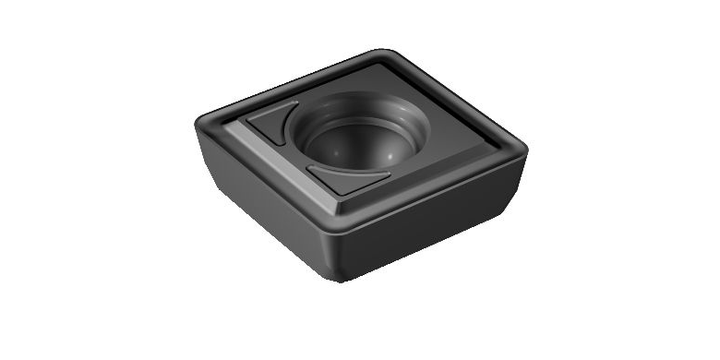

Sandvik Coromant Corodrill® 880 Insert for Drilling 880-04 03 W05H-P-GM
Sandvik Coromant Corodrill® 880 Insert for Drilling 880-04 03 W05H-P-GM
Brand: | Sandvik Coromant |
Model: | 880-04 03 W05H-P-GM |
Product Description
Sandvik Coromant Corodrill® 880 Insert for Drilling 880-04 03 W05H-P-GM
Material classification level 1 (TMC1ISO)
PMKNSH
Insert usage code (INSUC)
P
Chip breaker manufacturer's designation (CBMD)
GM
Insert size and shape (CUTINTSIZESHAPE)
CoroDrill 880 -0403-P
Inscribed circle diameter (IC)
7.4 mm
Insert shape code (SC)
S
Corner radius (RE)
0.5 mm
Wiper edge property (WEP)
true
Grade (GRADE)
4344
Substrate (SUBSTRATE)
HC
Coating (COATING)
PVD TIALN
Insert thickness (S)
2.8 mm
Weight of item (WT)
0.002 kg
Sensor embedded property (SEP)
0
Life cycle state (LCS)
Released
Release pack id (RELEASEPACK)
15.2
US $ 193.93
Quantity:
EA
MOQ of 10 EA
Bundle of 10 EA
