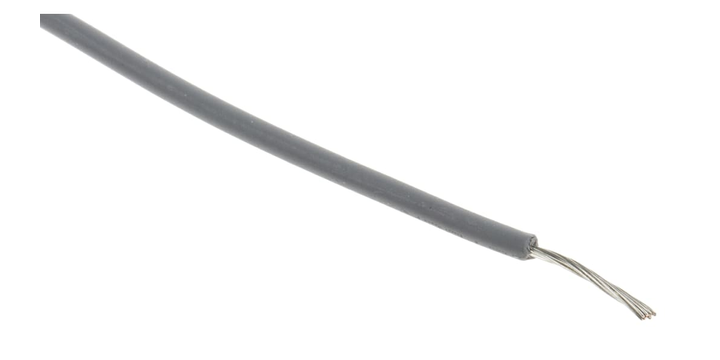

Rs Pro 8738996 Grey 0.33 Mm² Hook up Wire, 22 Awg, 17/0.16 Mm, 100m, Xlpe Insulation (1 Reel of 100 Metres)
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
100 m
Voltage Rating
6 kV dc
Specification Met
UL 3239
Sheath Colour
Grey
Insulation Material
XLPE
American Wire Gauge
22 AWG
Minimum Operating Temperature
0°C
Maximum Operating Temperature
+105°C
Outer Diameter
1.58 mm
Number of Strands
17
Size of Strands
0.16 mm
Conductor Material
Tinned Copper
Core Strands
17/0.16 mm
Wire Style
UL3239
Insulation Wall Thickness
1.6 mm
Product Description
US $ 17.31
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 17.31 |
Quantity:
EA
This item is sold by
SG-4570630354
