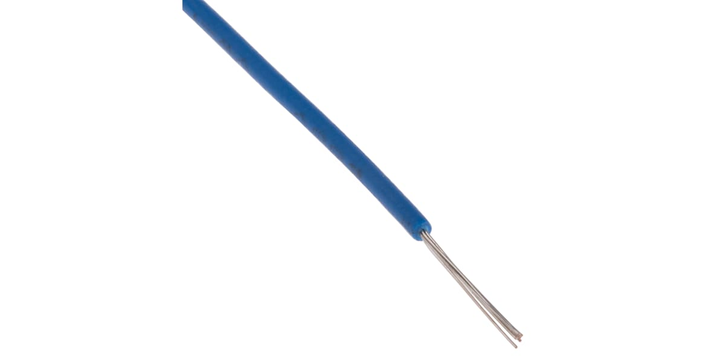

Rs Pro 8724432 Blue 0.08 Mm² Hook up Wire, 28 Awg, 7/0.12 Mm, 100m, Mppe Insulation (1 Reel of 100 Metres)
Rs Pro 8724432 Blue 0.08 Mm² Hook up Wire, 28 Awg, 7/0.12 Mm, 100m, Mppe Insulation (1 Reel of 100 Metres)
Brand:
RS Pro
Model:
8724432
Specifications
infotip-icon
View other Electrical Wire  dimensions or variations
Please select at least one specification below.
Length
100 m
Voltage Rating
600 V
Specification Met
UL 1581, UL 758
Sheath Colour
Blue
Insulation Material
MPPE
American Wire Gauge
28 AWG
Minimum Operating Temperature
0°C
Maximum Operating Temperature
+105°C
Outer Diameter
0.9 mm
Number of Strands
7
Size of Strands
0.127 mm
Conductor Material
Tinned Copper
Core Strands
7/0.12 mm
Wire Style
UL11028
Insulation Wall Thickness
0.2 mm
Product Description
