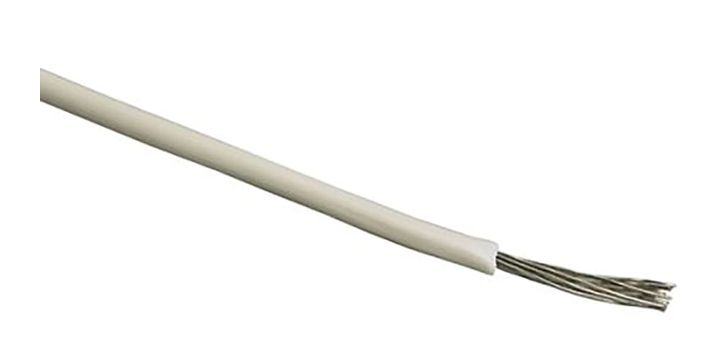

Rs Pro 8158680 White 16 Mm² Hook up Wire, 6 Awg, 126/0.4 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)
Specifications
Please select at least one specification below.
Length
100 m
Current Rating
100 A
Voltage Rating
1 kV
Specification Met
CSA C22.2 Type TEW, UK BS 6231, UL 1283
Sheath Colour
White
Insulation Material
PVC
American Wire Gauge
6 AWG
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
+105°C
Outer Diameter
9.2 mm
Number of Strands
126
Size of Strands
0.4 mm
Conductor Material
Copper
Core Strands
126/0.4 mm
Cable Shape
Single Core
Insulation Wall Thickness
1.6 mm
Product Description
US $ 653.03
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 653.03 |
