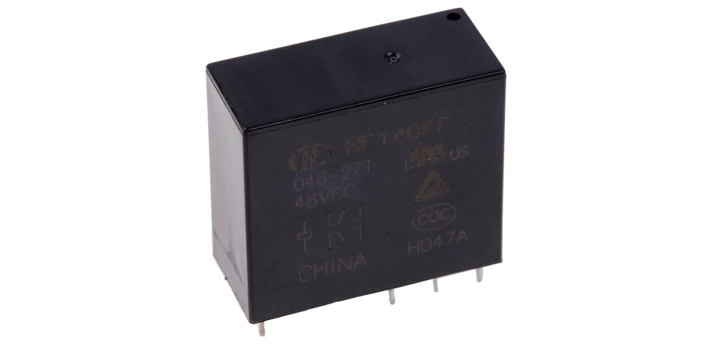

Rs Pro 8004491P Pcb Mount Power Relay, 48V Dc Coil, 10A Switching Current, Dpdt
Technical Data Sheets
Specifications
Please select at least one specification below.
Mounting Type
PCB Mount
Number of Poles
2
Contact Material
Silver Alloy
Contact Configuration
DPDT
Coil Voltage
48 V dc
Standards Met
CQC, CULus, RoHS Compliant
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Terminal Type
Through Hole
Maximum Switching Voltage AC
250 V
Maximum Switching Voltage DC
30 V
Coil Power
530 mW
Coil Resistance
4170 Ω
Isolation Coil To Contact
5 kV ac
Maximum Switching Power DC
240 W
Switching Current
10 A
Maximum Switching Power AC
2.5 kVA
Length
29 mm
This spec is not available in the specification table.
Application
Power
This spec is not available in the specification table.
Depth
13 mm
This spec is not available in the specification table.
Height
26.3 mm
This spec is not available in the specification table.
Life
100000 (Electrical) Operations, 100000000 (Mechanical) Operations
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Product Description
US$ 108.42
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US$ 5.42 |
Quantity:
EA
MOQ of 20 EA
Bundle of 1 EA
