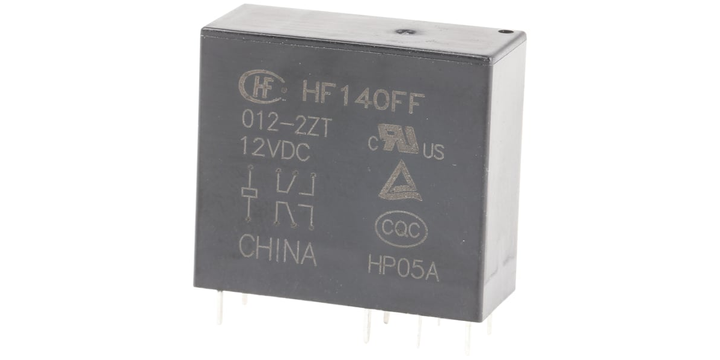

Rs Pro 8004489 Pcb Mount Power Relay, 12V Dc Coil, 10A Switching Current, Dpdt
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
29 mm
Application
Power
Mounting Type
PCB Mount
Depth
13 mm
Height
26.3 mm
Contact Material
Silver Alloy
Contact Configuration
DPDT
Coil Voltage
12 V dc
Standards Met
CQC, CULus, RoHS Compliant
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+85°C
Terminal Type
Through Hole
Maximum Switching Voltage AC
250 V ac
Maximum Switching Voltage DC
30 V dc
Coil Power
530 mW
Coil Resistance
275 Ohm
Isolation Coil To Contact
5 kV ac
Maximum Switching Power DC
240 W
Switching Current
10 A
Maximum Switching Power AC
2.5 kVA
Number of Poles
2
This spec is not available in the specification table.
Life
100000 (Electrical) Operations, 100000000 (Mechanical) Operations
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Product Description
US $ 4.46
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 4.46 |
