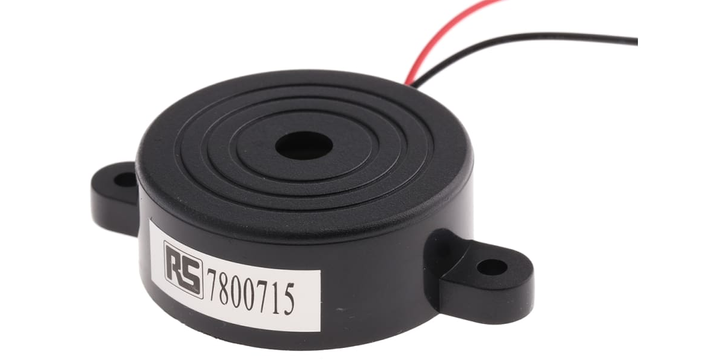

Rs Pro 7800715P 90dB Through Hole Continuous External Piezo Buzzer, 41.8 X 16mm, 1V Ac Min, 30V Ac Max
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
60 mm
Mounting Type
Through Hole
Height
16 mm
Dimensions
41.8 x 16 mm
Diameter
41.8 mm
Drive Type
External
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+60°C
Minimum Supply Voltage
1V ac
Maximum Supply Voltage
30V ac
Sound Level
90 dB
Tone Type
Continuous
Maximum Frequency
3.3 kHz
Supply Current
3 mA
Minimum Frequency
2300 Hz
Capacitance
35 nF
Product Description
US$ 17.44
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US$ 3.49 |
Quantity:
EA
MOQ of 5 EA
Bundle of 5 EA
