Rs Pro 7063323P 220 Microfarad Aluminium Electrolytic Capacitor 450V Dc, Snap-In

View Brand

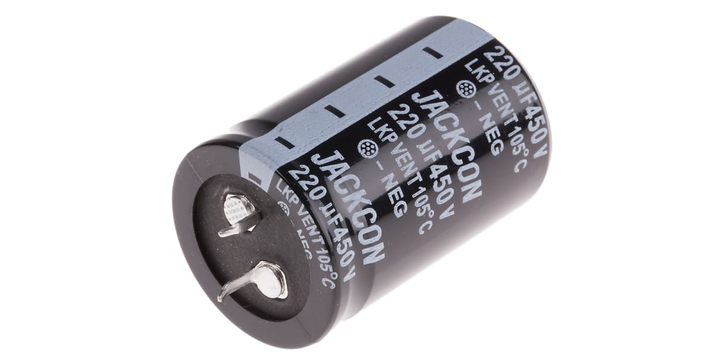

Rs Pro 7063323P 220 Microfarad Aluminium Electrolytic Capacitor 450V Dc, Snap-In

Brand:	RS Pro
Model:	7063323P

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

450 VDC

Mounting Type

Snap-In

Dimensions

30 (Dia.) x 45 mm

Capacitance

220 µF

Lead Pitch

10 mm

Lifetime

2000h

Ripple Current

1.35 A

Leakage Current

<=0.02 CV @ 5 min

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+105°C

Dissipation Factor

20%

Tolerance

±20%

Product Description

US $ 55.91

Quantity:

MOQ of 5 EA

Bundle of 1 EA

This item is sold by

SG-4570630354
